TdkDlgController Class Reference

Defines the TdkDlgController class. This class defines the a abstract dialog controller. More...

#include <TdkDlgController.h>

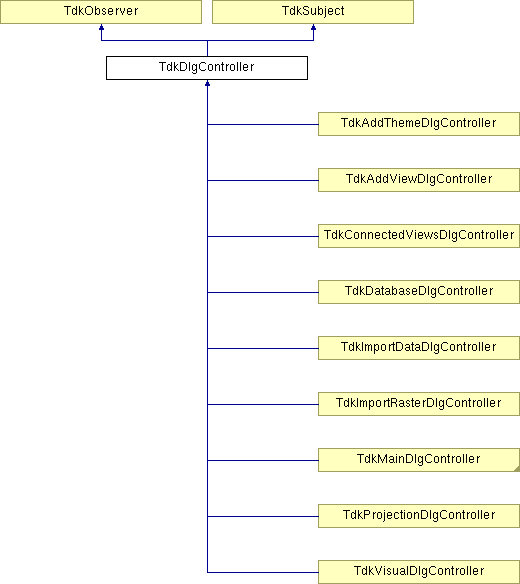

Inheritance diagram for TdkDlgController:

List of all members.

All Dialogs Common Methods
Methods common to all controllers.
void	showWindow (const bool isDialog=true)
	Shows the dialog.
void	closeWindow ()
	Close the dialog.
virtual void	setInitialState ()=0
	Sets dialog to initial state.
virtual string	dlgName ()=0
	Retrieves the definition dialog name.
TdkDlg *	getDialog ()
	Retrieves the pointer to controlled dialog.
void	setDialog (TdkDlg *newDialog)
	Sets the controlled dialog.
virtual int	getActionId (const string &action)
	Retrieves the action id int value correspondent to action string paramater.
void	removeDialog ()
	Removes the controlled dialog.
TdkInterfaceController *	getInterfaceController ()
	Retrieves the dialogs interface controller.
static void	setDlgFactoryNames (const map< string, string > &fctNames)
	Updates the factories names map.
static map< string, string > &	getDlgFactoryNames ()
	Retrieves the factories names map.
Public Member Functions
Constructor and Destructor Methods
Methods related to instantiation and destruction.
	TdkDlgController (TdkDlg *dlg)
	Constructor.
virtual	~TdkDlgController ()
	Virtual destructor.
Static Public Attributes
static map< string, string >	_dlgFactoryNames
	Factories names map.
Protected Attributes
TdkDlg *	_dlg
	Pointer to controlled dialog.
TdkInterfaceController *	_pic
	Pointer to dialog's interface controller.

---

Detailed Description

Defines the TdkDlgController class. This class defines the a abstract dialog controller.

TODO: 1) 2) 3)

See also:

TdkDlgController, TdkInterfaceController, TdkObserver

---

Constructor & Destructor Documentation

TdkDlgController::TdkDlgController

(

TdkDlg *

dlg

)

[inline]

Constructor.

Parameters:

dlg

Pointer to connect database dialog.

TdkDlgController::~TdkDlgController

(

)

[inline, virtual]

Virtual destructor.

---

Member Function Documentation

void TdkDlgController::showWindow

(

const bool

isDialog = true

)

[inline]

Shows the dialog.

void TdkDlgController::closeWindow

(

)

[inline]

Close the dialog.

virtual void TdkDlgController::setInitialState

(

)

[pure virtual]

Sets dialog to initial state.

Implemented in TdkAddThemeDlgController, TdkAddViewDlgController, TdkConnectedViewsDlgController, TdkDatabaseDlgController, TdkImportDataDlgController, TdkImportRasterDlgController, TdkMainDlgController, TdkProjectionDlgController, and TdkVisualDlgController.

virtual string TdkDlgController::dlgName

(

)

[pure virtual]

Retrieves the definition dialog name.

Returns:

String definition of dialog's name.

Implemented in TdkAddThemeDlgController, TdkAddViewDlgController, TdkConnectedViewsDlgController, TdkDatabaseDlgController, TdkImportDataDlgController, TdkImportRasterDlgController, TdkMainDlgController, TdkProjectionDlgController, and TdkVisualDlgController.

TdkDlg * TdkDlgController::getDialog

(

)

[inline]

Retrieves the pointer to controlled dialog.

Returns:

Pointer to controlled dialog.

void TdkDlgController::setDialog

(

TdkDlg *

newDialog

)

[inline]

Sets the controlled dialog.

Parameters:

newDialog

Dialog to be controlled.

int TdkDlgController::getActionId

(

const string &

action

)

[inline, virtual]

Retrieves the action id int value correspondent to action string paramater.

Returns:

Int value action id.

Reimplemented in TdkAddThemeDlgController, and TdkDatabaseDlgController.

void TdkDlgController::setDlgFactoryNames

(

const map< string, string > &

fctNames

)

[inline, static]

Updates the factories names map.

Parameters:

fctNames

Map of factories names.

map< string, string > & TdkDlgController::getDlgFactoryNames

(

)

[inline, static]

Retrieves the factories names map.

Returns:

Map of factories names.

void TdkDlgController::removeDialog

(

)

[inline]

Removes the controlled dialog.

TdkInterfaceController * TdkDlgController::getInterfaceController

(

)

[inline]

Retrieves the dialogs interface controller.

Returns:

Dialogs interface controller.

---

Member Data Documentation

map<string, string> TdkDlgController::_dlgFactoryNames [static]

Factories names map.

TdkDlg* TdkDlgController::_dlg [protected]

Pointer to controlled dialog.

TdkInterfaceController* TdkDlgController::_pic [protected]

Pointer to dialog's interface controller.

---

The documentation for this class was generated from the following file:

• D:/usuarios/rodrigof/svn/tdk/src/peer/components/ui/TdkDlgController.h

---
