TdkAddViewDlgController Class Reference

Defines the create view dialog controller. This class is responsible to control the dialog behavior. More...

#include <TdkAddViewDlgController.h>

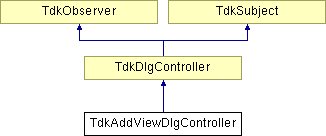

Inheritance diagram for TdkAddViewDlgController:

List of all members.

Behavioral Methods
Methods related dialog's behavior.
virtual void	setInitialState ()
	Sets the initial state of the dialog.
virtual std::string	dlgName ()
	Retrieves dialog's definiton name.
virtual void	update (TdkSubject *changedObject)
	Updates the dialog state. This method is called every time dialog's state changed.
virtual void	setDbIdx (const int &dbIdx)
	Sets the db idx parameter. This parameter allows access the database driver in the connections pool.
virtual TdkView *	getCreateView ()
	Retrieves the created view.
virtual void	okClicked ()
	Method is called on ok button clicked.
Public Member Functions
Constructor and Destructor Methods
Methods related to instantiation and destruction.
	TdkAddViewDlgController (TdkAddViewDlg *dlg)
	Constructor.
virtual	~TdkAddViewDlgController ()
	Destructor.
Private Attributes
TdkView *	_createdView
	Pointer to created view.
int	_dbIdx
	Database driver identifier in connections pool.

---

Detailed Description

Defines the create view dialog controller. This class is responsible to control the dialog behavior.

/**

---

Constructor & Destructor Documentation

TdkAddViewDlgController::TdkAddViewDlgController

(

TdkAddViewDlg *

dlg

)

Constructor.

Parameters:

dlg

Pointer to a create view dialog

TdkAddViewDlgController::~TdkAddViewDlgController

(

)

[virtual]

Destructor.

---

Member Function Documentation

void TdkAddViewDlgController::setInitialState

(

)

[virtual]

Sets the initial state of the dialog.

Implements TdkDlgController.

std::string TdkAddViewDlgController::dlgName

(

)

[virtual]

Retrieves dialog's definiton name.

Returns:

Returns the definition TDK_ADD_VIEW_DLG_NAME

Implements TdkDlgController.

void TdkAddViewDlgController::update

(

TdkSubject *

changedObject

)

[virtual]

Updates the dialog state. This method is called every time dialog's state changed.

Parameters:

changedObject

The object that changed.

Implements TdkObserver.

void TdkAddViewDlgController::setDbIdx

(

const int &

dbIdx

)

[virtual]

Sets the db idx parameter. This parameter allows access the database driver in the connections pool.

Parameters:

dbIdx

Index of database driver in connections pool.

TdkView * TdkAddViewDlgController::getCreateView

(

)

[virtual]

Retrieves the created view.

Returns:

Returns the created view.

void TdkAddViewDlgController::okClicked

(

)

[protected, virtual]

Method is called on ok button clicked.

---

Member Data Documentation

TdkView* TdkAddViewDlgController::_createdView [private]

Pointer to created view.

int TdkAddViewDlgController::_dbIdx [private]

Database driver identifier in connections pool.

---

The documentation for this class was generated from the following files:

• D:/usuarios/rodrigof/svn/tdk/src/peer/components/ui/TdkAddViewDlgController.h
• D:/usuarios/rodrigof/svn/tdk/src/peer/components/ui/TdkAddViewDlgController.cpp

---
