TdkAddThemeDlgController Class Reference

#include <TdkAddThemeDlgController.h>

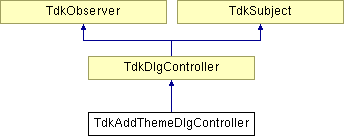

Inheritance diagram for TdkAddThemeDlgController:

List of all members.

Behavioral Methods
Methods related dialog's behavior.
virtual void	setInitialState ()
	Sets the initial state of the dialog.
virtual string	dlgName ()
	Retrieves dialog's definiton name.
virtual void	update (TdkSubject *changedObject)
	Updates the dialog state. This method is called every time dialog's state changed.
virtual void	setViewList (const vector< string > &viewList)
	Sets the view list in dialog.
virtual void	setLayerList (const vector< string > &layerList)
	Sets the layer list in dialog.
virtual void	setLayerListCurrentItem (const int &itemIdx)
	Sets the layers list current item.
virtual void	setViewListCurrentItem (const int &itemIdx)
	Sets the views list current item.
virtual void	setDbIdx (const int &dbIdx) throw (TdkException)
	Sets the db idx parameter. This parameter allows access the database driver in the connections pool.
virtual TdkTheme *	getCreatedTheme ()
	Retrieves the created theme.
virtual int	getActionId (const string &action)
	Retrieves the action generated by user. Given a action name retrives the correspondent int value.
virtual void	layerTablesClicked ()
	Action called when layer tables list changed.
virtual void	themeTablesClicked ()
	Action called when theme tables list changed.
virtual void	layerListActivated ()
	Action called when layers names list changed.
virtual void	viewListActivated ()
	Action called when views names list changed.
virtual void	addTableClicked ()
	Action called when add table button clicked.
virtual void	removeTableClicked ()
	Action called when remove table button clicked.
virtual void	okButtonClicked ()
	Action called when ok button clicked.
virtual TdkLayer *	getCurrentLayer ()
	Method's called when the program needs to know current layer selected in layer list.
Public Member Functions
Constructor and Destructor Methods
Methods related to instantiation and destruction.
	TdkAddThemeDlgController (TdkAddThemeDlg *dlg)
	Constructor.
virtual	~TdkAddThemeDlgController ()
	Destructor.
Private Attributes
int	_viewId
	Current view id.
int	_layerId
	Current layer id.
TeDatabase *	_db
	Pointer to a database driver.
TdkTheme *	_createdTheme
	Pointer to theme created.

---

Constructor & Destructor Documentation

TdkAddThemeDlgController::TdkAddThemeDlgController

(

TdkAddThemeDlg *

dlg

)

Constructor.

Parameters:

dlg

Pointer to a create theme dialog

TdkAddThemeDlgController::~TdkAddThemeDlgController

(

)

[virtual]

Destructor.

---

Member Function Documentation

void TdkAddThemeDlgController::setInitialState

(

)

[virtual]

Sets the initial state of the dialog.

Implements TdkDlgController.

string TdkAddThemeDlgController::dlgName

(

)

[virtual]

Retrieves dialog's definiton name.

Returns:

Returns the definition TDK_ADD_THEME_DLG_NAME

Implements TdkDlgController.

void TdkAddThemeDlgController::update

(

TdkSubject *

changedObject

)

[virtual]

Updates the dialog state. This method is called every time dialog's state changed.

Parameters:

changedObject

The object that changed.

Implements TdkObserver.

void TdkAddThemeDlgController::setViewList

(

const vector< string > &

viewList

)

[virtual]

Sets the view list in dialog.

Parameters:

viewList

Vector with all views names.

void TdkAddThemeDlgController::setLayerList

(

const vector< string > &

layerList

)

[virtual]

Sets the layer list in dialog.

Parameters:

layerList

Vector with all layers names.

void TdkAddThemeDlgController::setLayerListCurrentItem

(

const int &

itemIdx

)

[virtual]

Sets the layers list current item.

Parameters:

itemIdx

Item index in list.

void TdkAddThemeDlgController::setViewListCurrentItem

(

const int &

itemIdx

)

[virtual]

Sets the views list current item.

Parameters:

itemIdx

Item index in list.

void TdkAddThemeDlgController::setDbIdx

(

const int &

dbIdx

)

throw (TdkException) [virtual]

Sets the db idx parameter. This parameter allows access the database driver in the connections pool.

Parameters:

dbIdx

Index of database driver in connections pool.

TdkTheme * TdkAddThemeDlgController::getCreatedTheme

(

)

[virtual]

Retrieves the created theme.

Returns:

Returns the created theme.

int TdkAddThemeDlgController::getActionId

(

const string &

action

)

[virtual]

Retrieves the action generated by user. Given a action name retrives the correspondent int value.

Returns:

Returns action correspondent int value.

Reimplemented from TdkDlgController.

void TdkAddThemeDlgController::layerTablesClicked

(

)

[protected, virtual]

Action called when layer tables list changed.

void TdkAddThemeDlgController::themeTablesClicked

(

)

[protected, virtual]

Action called when theme tables list changed.

void TdkAddThemeDlgController::layerListActivated

(

)

[protected, virtual]

Action called when layers names list changed.

void TdkAddThemeDlgController::viewListActivated

(

)

[protected, virtual]

Action called when views names list changed.

void TdkAddThemeDlgController::addTableClicked

(

)

[protected, virtual]

Action called when add table button clicked.

void TdkAddThemeDlgController::removeTableClicked

(

)

[protected, virtual]

Action called when remove table button clicked.

void TdkAddThemeDlgController::okButtonClicked

(

)

[protected, virtual]

Action called when ok button clicked.

TdkLayer * TdkAddThemeDlgController::getCurrentLayer

(

)

[protected, virtual]

Method's called when the program needs to know current layer selected in layer list.

Returns:

Returns the layer selected in layers names list.

---

Member Data Documentation

int TdkAddThemeDlgController::_viewId [private]

Current view id.

int TdkAddThemeDlgController::_layerId [private]

Current layer id.

TeDatabase* TdkAddThemeDlgController::_db [private]

Pointer to a database driver.

TdkTheme* TdkAddThemeDlgController::_createdTheme [private]

Pointer to theme created.

---

The documentation for this class was generated from the following files:

• D:/usuarios/rodrigof/svn/tdk/src/peer/components/ui/TdkAddThemeDlgController.h
• D:/usuarios/rodrigof/svn/tdk/src/peer/components/ui/TdkAddThemeDlgController.cpp

---
