TdkException Class Reference
[The Core Module]

Provides a class for handling exceptions on Tdk framework. More...

#include <TdkServer.h>

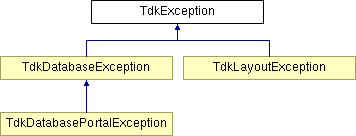

Inheritance diagram for TdkException:

List of all members.

Public Types
enum	{   UndefinedError, FatalError, InvalidValue, InvalidArgument,   MemoryAllocation, OutOfMemory, TypeCasting, OutOfBoundary,   FileNotFound, NoCurrentView, NoSelectedTheme, EmptyEventComposite,   ExistentEventComposite, MrSIDError, ShapefileError, NoAvailableUndo,   NoAvailableRedo, InvalidPointEditionInit, InvalidEditionPropertiesInit, NoSelectedObject,   MultipleSelectedObjects, NoUserPermission, UserNotFound, RoleNotFound,   NoTableSelected, ExistentTheme, ExistentLayer }
Public Member Functions
virtual	~TdkException ()
	TdkException (std::string src_file_name, int src_file_line, int error_code, std::string more_info="") throw ()
	Construtor: The error message based on the error coded.
	TdkException (std::string src_file_name="", int src_file_line=-1, std::string error_msg="") throw ()
	Construtor: Free error message.
const char *	trace () throw ()
	Returns a detailed error message: error message + more information + debug information (if DEBUG).
const char *	msg () throw ()
	Returns a simples error message: error message + more information.
const int	getCodeError () throw ()
	Returns the error message code.
	TdkException ()
	TdkException (const TdkException &)
	TdkException (const char *i_name)
TdkException &	operator= (const TdkException &)
virtual	~TdkException ()
virtual void	_raise () const
void	operator>>= (cdrStream &) const
void	operator<<= (cdrStream &)
virtual CORBA::Exception *	_NP_duplicate () const
Static Public Member Functions
static TdkException *	_downcast (CORBA::Exception *)
static const TdkException *	_downcast (const CORBA::Exception *)
static TdkException *	_narrow (CORBA::Exception *_e)
Public Attributes
CORBA::String_member	name
Static Public Attributes
static _core_attr insertExceptionToAny	insertToAnyFn
static _core_attr insertExceptionToAnyNCP	insertToAnyFnNCP
static _core_attr const char *	_PD_repoId
static _core_attr const char *	_PD_typeId
Protected Member Functions
virtual void	setMessagesMap ()
	Sets the message map.
void	setDebugInfo (std::string src_file_name, int src_file_line) throw ()
	Sets the debug information.
std::string	getMessageFromMap (int code_error) throw ()
	Returns a message from the map corresponding to the given error code.
Protected Attributes
int	codeError_
	The error code.
std::string	message_
	The error message.
std::string	debugInfo_
	Debug information about the moment when the exception happened: class, method, source file, line number.
std::string	moreInfo_
	More information will show with the error message.
_MSG_MAP	msgMap_
	The message map indexed by the error code.
Private Member Functions
virtual const char *	_NP_typeId () const
virtual const char *	_NP_repoId (int *) const
virtual void	_NP_marshal (cdrStream &) const

---

Detailed Description

Provides a class for handling exceptions on Tdk framework.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

UndefinedError
FatalError
InvalidValue
InvalidArgument
MemoryAllocation
OutOfMemory
TypeCasting
OutOfBoundary
FileNotFound
NoCurrentView
NoSelectedTheme
EmptyEventComposite
ExistentEventComposite
MrSIDError
ShapefileError
NoAvailableUndo
NoAvailableRedo
InvalidPointEditionInit
InvalidEditionPropertiesInit
NoSelectedObject
MultipleSelectedObjects
NoUserPermission
UserNotFound
RoleNotFound
NoTableSelected
ExistentTheme
ExistentLayer

---

Constructor & Destructor Documentation

virtual TdkException::~TdkException

(

)

[inline, virtual]

TdkException::TdkException	(	std::string	src_file_name,
		int	src_file_line,
		int	error_code,
		std::string	more_info = ""
	)			throw ()

Construtor: The error message based on the error coded.

Tecgraf - GIS development team

Tdk Framework

@(#) TdkExeption.cpp

Parameters:

src_file_name	Name of the source file where the exception happened.
src_file_line	Line number of the source file where the exception happened.
error_code	Error code associated with the exception.
more_info	This extra information must be showed with the error message.

TdkException::TdkException	(	std::string	src_file_name = "",
		int	src_file_line = -1,
		std::string	error_msg = ""
	)			throw ()

Construtor: Free error message.

Parameters:

src_file_name	Name of the source file where the exception happened.
src_file_line	Line number of the source file where the exception happened.
error_msg	The error message.

TdkException::TdkException

(

)

[inline]

TdkException::TdkException

(

const TdkException &

)

TdkException::TdkException

(

const char *

i_name

)

virtual TdkException::~TdkException

(

)

[virtual]

---

Member Function Documentation

void TdkException::setMessagesMap

(

)

[inline, protected, virtual]

Sets the message map.

Reimplemented in TdkLayoutException, TdkDatabaseException, and TdkDatabasePortalException.

void TdkException::setDebugInfo	(	std::string	src_file_name,
		int	src_file_line
	)			throw () [protected]

Sets the debug information.

std::string TdkException::getMessageFromMap

(

int

code_error

)

throw () [protected]

Returns a message from the map corresponding to the given error code.

const char * TdkException::trace

(

)

throw ()

Returns a detailed error message: error message + more information + debug information (if DEBUG).

const char * TdkException::msg

(

)

throw ()

Returns a simples error message: error message + more information.

const int TdkException::getCodeError

(

)

throw ()

Returns the error message code.

TdkException& TdkException::operator=

(

const TdkException &

)

virtual void TdkException::_raise

(

)

const [virtual]

static TdkException* TdkException::_downcast

(

CORBA::Exception *

)

[static]

static const TdkException* TdkException::_downcast

(

const CORBA::Exception *

)

[static]

static TdkException* TdkException::_narrow

(

CORBA::Exception *

_e

)

[inline, static]

void TdkException::operator>>=

(

cdrStream &

)

const

void TdkException::operator<<=

(

cdrStream &

)

virtual CORBA::Exception* TdkException::_NP_duplicate

(

)

const [virtual]

virtual const char* TdkException::_NP_typeId

(

)

const [private, virtual]

virtual const char* TdkException::_NP_repoId

(

int *

)

const [private, virtual]

virtual void TdkException::_NP_marshal

(

cdrStream &

)

const [private, virtual]

---

Member Data Documentation

int TdkException::codeError_ [protected]

The error code.

std::string TdkException::message_ [protected]

The error message.

std::string TdkException::debugInfo_ [protected]

Debug information about the moment when the exception happened: class, method, source file, line number.

std::string TdkException::moreInfo_ [protected]

More information will show with the error message.

_MSG_MAP TdkException::msgMap_ [protected]

The message map indexed by the error code.

CORBA::String_member TdkException::name

_core_attr insertExceptionToAny TdkException::insertToAnyFn [static]

_core_attr insertExceptionToAnyNCP TdkException::insertToAnyFnNCP [static]

_core_attr const char* TdkException::_PD_repoId [static]

_core_attr const char* TdkException::_PD_typeId [static]

---

The documentation for this class was generated from the following files:

• D:/usuarios/rodrigof/svn/tdk/src/peer/components/core/TdkException.h
• D:/usuarios/rodrigof/svn/tdk/src/server/generated/TdkServer.h
• D:/usuarios/rodrigof/svn/tdk/src/peer/components/core/TdkException.cpp

---
