SXYSimpleGraph Class Reference

#include <sxy_graph_simple.h>

Inheritance diagram for SXYSimpleGraph:

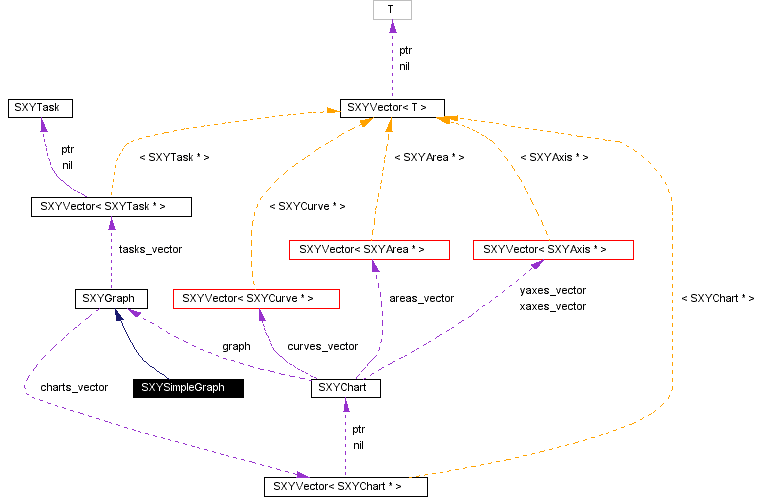

[legend]Collaboration diagram for SXYSimpleGraph:


Public Methods
void	setType (SXYSimpleGraphType typ)
SXYSimpleGraphType	getType (void)
SXYChart *	getTheChart (void)
SXYAxis *	getVerticalAxis (void)
SXYAxis *	getHorizontalAxis (void)
void	remountGraph (void)
void	getScales (double &xmin, double &xmax, double &ymin, double &ymax)
void	setScales (double xmin, double xmax, double ymin, double ymax)
void	setGridScales (double xmin, double xmax, double ymin, double ymax)
void	getGridScales (double &xmin, double &xmax, double &ymin, double &ymax)
void	fitHorizontalScale (void)
void	fitVerticalScale (void)
void	fitAllScales (void)
void	revertHorizontalAxis (void)
void	revertVerticalAxis (void)
void	setAxesLayout (SXYSimpleGraphLayout new_layout)
void	setHorizontalAxisDirection (SXYAxisDirection direction)
void	setVerticalAxisDirection (SXYAxisDirection direction)
SXYAxisDirection	getHorizontalAxisDirection (void)
SXYAxisDirection	getVerticalAxisDirection (void)
void	setHorizontalAxisPosition (double xp, double yp)
void	setVerticalAxisPosition (double xp, double yp)
void	getHorizontalAxisPosition (double &xp, double &yp)
void	getVerticalAxisPosition (double &xp, double &yp)
void	setVerticalAxisSize (double size)
double	getVerticalAxisSize (void)
void	setHorizontalAxisSize (double size)
double	getHorizontalAxisSize (void)
void	setTheTitle (char *title)
void	setTheSubTitle (char *title)
char *	getTheTitle (void)
char *	getTheSubTitle (void)
void	setHorizontalAxisTitle (char *title)
void	setVerticalAxisTitle (char *title)
char *	getHorizontalAxisTitle (void)
char *	getVerticalAxisTitle (void)
void	getAxesSteps (double &sx, double &sy)
void	setAxesSteps (double sx, double sy)
void	getGridsSteps (double &sx, double &sy)
void	setGridsSteps (double sx, double sy)
void	getGridsAutoMultipleSteps (double &smx, double &smy)
void	setGridsAutoMultipleSteps (double smx, double smy)
void	attachCurve (SXYCurve *curve)
void	detachCurve (SXYCurve *curve)
	SXYSimpleGraph (Ihandle *iupcnv, SXYSimpleGraphType typ)
	Construtor da classe.
virtual	~SXYSimpleGraph ()
	Destrutor.
Protected Methods
void	adaptGrid (SXYAxis *ax)
void	inferGridType (SXYGridType xtype, SXYGridType ytype)
void	inferAxisType (SXYAxisType xtype, SXYAxisType ytype)
Private Attributes
SXYSimpleGraphType	type

Constructor & Destructor Documentation

SXYSimpleGraph::SXYSimpleGraph ( Ihandle * iupcnv,

SXYSimpleGraphType sgtype

)

Construtor da classe.

Parameters:

iupcnv handle do canvas IUP criado no ambiente Lua

Definition at line 25 of file sxy_graph_simple.cpp.
References type.

SXYSimpleGraph::~SXYSimpleGraph ( ) [virtual]

Destrutor.

Definition at line 134 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), SXYChart::getNumAxes(), SXYGraph::getNumCharts(), getTheChart(), and getVerticalAxis().

Member Function Documentation

void SXYSimpleGraph::adaptGrid ( SXYAxis * ax ) [protected]

Definition at line 278 of file sxy_graph_simple.cpp.
References SXYAxis::getDirection(), SXYAxis::getOrientation(), SXYAxis::getPosition(), SXYAxis::getScales(), SXYAxis::getSize(), getTheChart(), HORIZONTAL_AXIS, HORIZONTAL_GRID, SXYChart::setGridDirection(), SXYChart::setGridPosition(), SXYChart::setGridScales(), SXYChart::setGridSize(), SXYGridOrientation, and VERTICAL_GRID.
Referenced by fitAllScales(), fitHorizontalScale(), fitVerticalScale(), setHorizontalAxisDirection(), setHorizontalAxisPosition(), setVerticalAxisDirection(), and setVerticalAxisPosition().

void SXYSimpleGraph::attachCurve ( SXYCurve * curve )

Definition at line 447 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), getVerticalAxis(), and SXYCurve::setAxis().

void SXYSimpleGraph::detachCurve ( SXYCurve * curve )

Definition at line 456 of file sxy_graph_simple.cpp.
References SXYCurve::unsetAxis().

void SXYSimpleGraph::fitAllScales ( void )

Definition at line 213 of file sxy_graph_simple.cpp.
References adaptGrid(), SXYGraph::fitScales(), getHorizontalAxis(), and getVerticalAxis().

void SXYSimpleGraph::fitHorizontalScale ( void )

Definition at line 199 of file sxy_graph_simple.cpp.
References adaptGrid(), SXYGraph::fitScales(), and getHorizontalAxis().

void SXYSimpleGraph::fitVerticalScale ( void )

Definition at line 206 of file sxy_graph_simple.cpp.
References adaptGrid(), SXYGraph::fitScales(), and getVerticalAxis().

void SXYSimpleGraph::getAxesSteps ( double & sx,

double & sy

)

Definition at line 165 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), SXYAxis::getStep(), and getVerticalAxis().

void SXYSimpleGraph::getGridsAutoMultipleSteps ( double & smx,

double & smy

)

Definition at line 260 of file sxy_graph_simple.cpp.
References SXYChart::getGridAutoMultipleStep(), and getTheChart().

void SXYSimpleGraph::getGridScales ( double & xmin,

double & xmax,

double & ymin,

double & ymax

)

Definition at line 222 of file sxy_graph_simple.cpp.
References SXYChart::getGridScales(), and getTheChart().

void SXYSimpleGraph::getGridsSteps ( double & sx,

double & sy

)

Definition at line 242 of file sxy_graph_simple.cpp.
References SXYChart::getGridStep(), and getTheChart().

SXYAxis * SXYSimpleGraph::getHorizontalAxis ( void )

Definition at line 440 of file sxy_graph_simple.cpp.
References SXYChart::getAxis(), and getTheChart().
Referenced by attachCurve(), fitAllScales(), fitHorizontalScale(), getAxesSteps(), getHorizontalAxisDirection(), getHorizontalAxisSize(), getHorizontalAxisTitle(), getScales(), inferGridType(), revertHorizontalAxis(), setAxesSteps(), setHorizontalAxisDirection(), setHorizontalAxisPosition(), setHorizontalAxisSize(), setHorizontalAxisTitle(), setScales(), and ~SXYSimpleGraph().

SXYAxisDirection SXYSimpleGraph::getHorizontalAxisDirection ( void )

Definition at line 332 of file sxy_graph_simple.cpp.
References SXYAxis::getDirection(), getHorizontalAxis(), and SXYAxisDirection.

void SXYSimpleGraph::getHorizontalAxisPosition ( double & xp,

double & yp

)

double SXYSimpleGraph::getHorizontalAxisSize ( void )

Definition at line 512 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), and SXYAxis::getSize().

char * SXYSimpleGraph::getHorizontalAxisTitle ( void )

Definition at line 398 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), and SXYAxis::getTitle().

void SXYSimpleGraph::getScales ( double & xmin,

double & xmax,

double & ymin,

double & ymax

)

Definition at line 154 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), SXYAxis::getScales(), and getVerticalAxis().

SXYChart * SXYSimpleGraph::getTheChart ( void )

Definition at line 427 of file sxy_graph_simple.cpp.
References SXYGraph::getChart().
Referenced by adaptGrid(), getGridsAutoMultipleSteps(), getGridScales(), getGridsSteps(), getHorizontalAxis(), getTheSubTitle(), getTheTitle(), getVerticalAxis(), remountGraph(), setGridsAutoMultipleSteps(), setGridScales(), setGridsSteps(), setScales(), setTheSubTitle(), setTheTitle(), and ~SXYSimpleGraph().

char * SXYSimpleGraph::getTheSubTitle ( void )

Definition at line 372 of file sxy_graph_simple.cpp.
References SXYChart::getSubTitle(), and getTheChart().

char * SXYSimpleGraph::getTheTitle ( void )

Definition at line 356 of file sxy_graph_simple.cpp.
References getTheChart(), and SXYChart::getTitle().

SXYSimpleGraphType SXYSimpleGraph::getType ( void )

Definition at line 421 of file sxy_graph_simple.cpp.
References SXYSimpleGraphType, and type.
Referenced by inferAxisType().

SXYAxis * SXYSimpleGraph::getVerticalAxis ( void )

Definition at line 433 of file sxy_graph_simple.cpp.
References SXYChart::getAxis(), and getTheChart().
Referenced by attachCurve(), fitAllScales(), fitVerticalScale(), getAxesSteps(), getScales(), getVerticalAxisDirection(), getVerticalAxisSize(), getVerticalAxisTitle(), inferGridType(), revertVerticalAxis(), setAxesSteps(), setScales(), setVerticalAxisDirection(), setVerticalAxisPosition(), setVerticalAxisSize(), setVerticalAxisTitle(), and ~SXYSimpleGraph().

SXYAxisDirection SXYSimpleGraph::getVerticalAxisDirection ( void )

Definition at line 340 of file sxy_graph_simple.cpp.
References SXYAxis::getDirection(), getVerticalAxis(), and SXYAxisDirection.

void SXYSimpleGraph::getVerticalAxisPosition ( double & xp,

double & yp

)

double SXYSimpleGraph::getVerticalAxisSize ( void )

Definition at line 496 of file sxy_graph_simple.cpp.
References SXYAxis::getSize(), and getVerticalAxis().

char * SXYSimpleGraph::getVerticalAxisTitle ( void )

Definition at line 406 of file sxy_graph_simple.cpp.
References SXYAxis::getTitle(), and getVerticalAxis().

void SXYSimpleGraph::inferAxisType ( SXYAxisType * xtype,

SXYAxisType * ytype

) [protected]

Definition at line 111 of file sxy_graph_simple.cpp.
References getType(), LINEAR_AXIS, LOG_AXIS, LOG_SIMPLE_GRAPH, SEMILOG_SIMPLE_GRAPH, SXYSimpleGraphType, TIME_AXIS, TIME_LINEAR_SIMPLE_GRAPH, and TIME_LOG_SIMPLE_GRAPH.
Referenced by remountGraph().

void SXYSimpleGraph::inferGridType ( SXYGridType * xtype,

SXYGridType * ytype

) [protected]

Definition at line 97 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), SXYAxis::getType(), getVerticalAxis(), LINEAR_GRID, LOG_AXIS, and LOG_GRID.
Referenced by remountGraph().

void SXYSimpleGraph::remountGraph ( void ) [virtual]

Implements SXYGraph.
Definition at line 32 of file sxy_graph_simple.cpp.
References SXYChart::getAxis(), SXYChart::getCurve(), SXYVector< T >::getElement(), SXYVector< T >::getLength(), SXYChart::getNumAxes(), SXYGraph::getNumCharts(), SXYChart::getNumCurves(), getTheChart(), inferAxisType(), inferGridType(), SXYChart::insertAxis(), SXYGraph::insertChart(), SXYVector< T >::insertElement(), SXYChart::removeAxis(), SXYGraph::removeChart(), SXYChart::setGridType(), SXYChart::setLayoutFrom(), SXYAxis::setLayoutFrom(), SXYAxisType, SXYGridType, and SXYChart::tryGridAdjust().
Referenced by setType().

void SXYSimpleGraph::revertHorizontalAxis ( void )

Definition at line 462 of file sxy_graph_simple.cpp.
References SXYAxis::getDirection(), getHorizontalAxis(), SXYAxis::getPosition(), INVERTED_AXIS, NORMAL_AXIS, SXYAxis::setDirection(), SXYAxis::setPosition(), and SXYAxisDirection.

void SXYSimpleGraph::revertVerticalAxis ( void )

Definition at line 475 of file sxy_graph_simple.cpp.
References SXYAxis::getDirection(), SXYAxis::getPosition(), getVerticalAxis(), INVERTED_AXIS, NORMAL_AXIS, SXYAxis::setDirection(), SXYAxis::setPosition(), and SXYAxisDirection.

void SXYSimpleGraph::setAxesLayout ( SXYSimpleGraphLayout new_layout )

Definition at line 520 of file sxy_graph_simple.cpp.
References DEPTH_LAYOUT, HALF_CROSS_LAYOUT, QUARTER_CROSS_LAYOUT, setHorizontalAxisDirection(), setHorizontalAxisPosition(), setHorizontalAxisSize(), setVerticalAxisDirection(), setVerticalAxisPosition(), setVerticalAxisSize(), and TYPICAL_LAYOUT.

void SXYSimpleGraph::setAxesSteps ( double sx,

double sy

)

Definition at line 175 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), getVerticalAxis(), and SXYAxis::setStep().

void SXYSimpleGraph::setGridsAutoMultipleSteps ( double smx,

double smy

)

Definition at line 269 of file sxy_graph_simple.cpp.
References getTheChart(), and SXYChart::setGridAutoMultipleStep().

void SXYSimpleGraph::setGridScales ( double xmin,

double xmax,

double ymin,

double ymax

)

Definition at line 232 of file sxy_graph_simple.cpp.
References getTheChart(), and SXYChart::setGridScales().

void SXYSimpleGraph::setGridsSteps ( double sx,

double sy

)

Definition at line 251 of file sxy_graph_simple.cpp.
References getTheChart(), and SXYChart::setGridStep().

void SXYSimpleGraph::setHorizontalAxisDirection ( SXYAxisDirection direction )

Definition at line 296 of file sxy_graph_simple.cpp.
References adaptGrid(), getHorizontalAxis(), and SXYAxis::setDirection().
Referenced by setAxesLayout().

void SXYSimpleGraph::setHorizontalAxisPosition ( double xp,

double yp

)

Definition at line 305 of file sxy_graph_simple.cpp.
References adaptGrid(), getHorizontalAxis(), and SXYAxis::setPosition().
Referenced by setAxesLayout().

void SXYSimpleGraph::setHorizontalAxisSize ( double size )

Definition at line 504 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), and SXYAxis::setSize().
Referenced by setAxesLayout().

void SXYSimpleGraph::setHorizontalAxisTitle ( char * title )

Definition at line 381 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), and SXYAxis::setTitle().

void SXYSimpleGraph::setScales ( double xmin,

double xmax,

double ymin,

double ymax

)

Definition at line 185 of file sxy_graph_simple.cpp.
References getHorizontalAxis(), getTheChart(), getVerticalAxis(), SXYAxis::setScales(), and SXYChart::tryGridAdjust().

void SXYSimpleGraph::setTheSubTitle ( char * title )

Definition at line 364 of file sxy_graph_simple.cpp.
References getTheChart(), and SXYChart::setSubTitle().

void SXYSimpleGraph::setTheTitle ( char * title )

Definition at line 348 of file sxy_graph_simple.cpp.
References getTheChart(), and SXYChart::setTitle().

void SXYSimpleGraph::setType ( SXYSimpleGraphType typ )

Definition at line 414 of file sxy_graph_simple.cpp.
References remountGraph(), and type.

void SXYSimpleGraph::setVerticalAxisDirection ( SXYAxisDirection direction )

Definition at line 323 of file sxy_graph_simple.cpp.
References adaptGrid(), getVerticalAxis(), and SXYAxis::setDirection().
Referenced by setAxesLayout().

void SXYSimpleGraph::setVerticalAxisPosition ( double xp,

double yp

)

Definition at line 314 of file sxy_graph_simple.cpp.
References adaptGrid(), getVerticalAxis(), and SXYAxis::setPosition().
Referenced by setAxesLayout().

void SXYSimpleGraph::setVerticalAxisSize ( double size )

Definition at line 488 of file sxy_graph_simple.cpp.
References getVerticalAxis(), and SXYAxis::setSize().
Referenced by setAxesLayout().

void SXYSimpleGraph::setVerticalAxisTitle ( char * title )

Definition at line 389 of file sxy_graph_simple.cpp.
References getVerticalAxis(), and SXYAxis::setTitle().

Member Data Documentation

SXYSimpleGraphType SXYSimpleGraph::type [private]

Definition at line 42 of file sxy_graph_simple.h.
Referenced by getType(), setType(), and SXYSimpleGraph().

The documentation for this class was generated from the following files:

SXY
Tecgraf / PUC-Rio - Computer Graphics Technology Group

SXYSimpleGraph Class Reference

Public Methods

Protected Methods

Private Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
