SXYGraph Class Reference

#include <sxy_graph.h>

Inheritance diagram for SXYGraph:

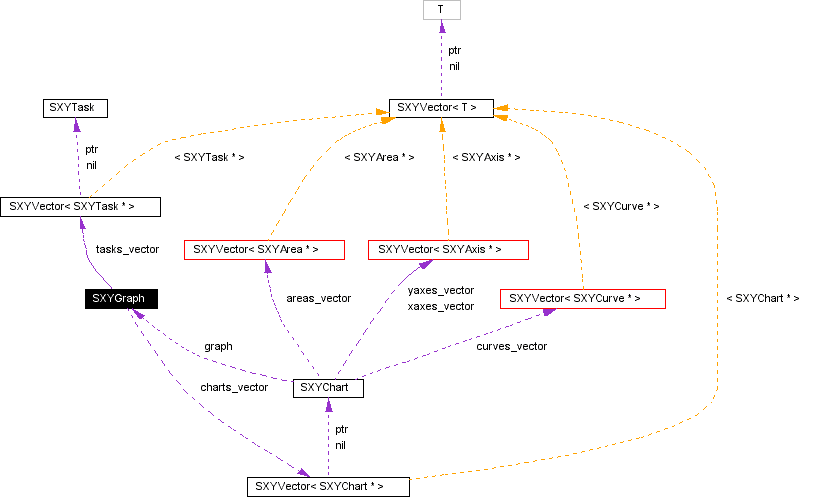

[legend]Collaboration diagram for SXYGraph:


Public Methods
SXYChart *	getChart (int i)
int	getNumCharts (void)
void	insertChart (SXYChart *cht)
void	removeChart (SXYChart *cht)
void	setStandartTasks (void)
SXYTask *	getTask (int i)
int	getNumTasks (void)
void	insertTask (SXYTask *tsk)
void	removeTask (SXYTask *tsk)
int	getChartOfEvent (int x, int y)
int	getDeviceSizeMM (double &w, double &h)
cdCanvas *	getCdCanvas (void)
	Função para consulta do canvas CD associado ao gráfico.
Ihandle *	getIupCanvas (void)
	Função para consulta do canvas IUP associado ao gráfico.
void	activateDisplayCanvas (void)
void	setZoom (double xratio, double yratio)
void	fitScales (SXYGraphFitOption opt)
void	redrawGraph (void)
void	printGraph (int ask, char *ps_cmd)
void	copyGraph (int width, int height)
virtual void	remountGraph (void)=0
virtual void	updateGraph (void)
void	tryGridAdjust ()
	SXYGraph (Ihandle *iupcnv)
	Construtor da classe.
virtual	~SXYGraph ()
	Destrutor.
Protected Methods
virtual void	mouseClick (int b, int x, int y, int sft, int ctr)
virtual void	mouseUnclick (int b, int x, int y, int sft, int ctr)
virtual void	mouseMotion (int x, int y, int sft, int ctr)
virtual void	mouseEnter (void)
virtual void	mouseLeave (void)
Private Methods
void	fitAllAxis (SXYAxisOrientation orientation)
void	drawChartsAt (cdCanvas *cnv, SXYGraphDoubleBufferMode mode)
void	deleteGraphDatas (void)
Static Private Methods
SXYGraph *	getThis (Ihandle *handle)
int	iupActionCallback (Ihandle *h)
int	iupResizeCallback (Ihandle *h, int width, int height)
int	iupEnterCallback (Ihandle *h)
int	iupLeaveCallback (Ihandle *h)
int	iupMotionCallback (Ihandle h, int x, int y, char r)
int	iupButtonCallback (Ihandle h, int b, int e, int x, int y, char r)
Private Attributes
SXYVector< SXYChart * > *	charts_vector
	Vetor para a estrutura que armazena os objetos (um gráfico) XY relativos ao gráfico.
SXYVector< SXYTask * > *	tasks_vector
	Vetor para a estrutura que armazena as tarefas associadas ao gráfico.
cdCanvas *	cd_canvas
	Handle do canvas CD (utilizado para desenho).
Ihandle *	iup_canvas
	Handle do canvas IUP (utilizado para interação com o usuário).

Constructor & Destructor Documentation

SXYGraph::SXYGraph ( Ihandle * iupcnv )

Construtor da classe.

Parameters:

iupcnv handle do canvas IUP criado no ambiente Lua

Definition at line 39 of file sxy_graph.cpp.
References cd_canvas, charts_vector, MAX_CHARTS, MAX_TASKS, and tasks_vector.

SXYGraph::~SXYGraph ( ) [virtual]

Destrutor.

Definition at line 78 of file sxy_graph.cpp.
References cd_canvas, charts_vector, and tasks_vector.

Member Function Documentation

void SXYGraph::activateDisplayCanvas ( void )

Definition at line 391 of file sxy_graph.cpp.
Referenced by drawChartsAt(), getChartOfEvent(), iupButtonCallback(), iupMotionCallback(), and iupResizeCallback().

void SXYGraph::copyGraph ( int width,

int height

)

Definition at line 237 of file sxy_graph.cpp.
References drawChartsAt(), and redrawGraph().

void SXYGraph::deleteGraphDatas ( void ) [private]

void SXYGraph::drawChartsAt ( cdCanvas * cnv,

SXYGraphDoubleBufferMode mode

) [private]

Definition at line 206 of file sxy_graph.cpp.
References activateDisplayCanvas(), getChart(), getNumCharts(), and SXYChart::repaintChart().
Referenced by copyGraph(), printGraph(), and redrawGraph().

void SXYGraph::fitAllAxis ( SXYAxisOrientation orientation ) [private]

Definition at line 121 of file sxy_graph.cpp.
References SXYUtil::calcZoomOut(), SXYChart::getAxis(), getChart(), SXYChart::getNumAxes(), getNumCharts(), SXYAxis::getScales(), max, min, and SXYChart::setAllAxis().
Referenced by fitScales().

void SXYGraph::fitScales ( SXYGraphFitOption opt )

Definition at line 151 of file sxy_graph.cpp.
References ALL_X, ALL_Y, fitAllAxis(), SXYChart::fitScale(), getChart(), getNumCharts(), INDIVIDUAL_X, and INDIVIDUAL_Y.
Referenced by SXYSimpleGraph::fitAllScales(), SXYSimpleGraph::fitHorizontalScale(), and SXYSimpleGraph::fitVerticalScale().

cdCanvas * SXYGraph::getCdCanvas ( void )

Função para consulta do canvas CD associado ao gráfico.

Returns:
o ponteiro do canvas CD

Definition at line 95 of file sxy_graph.cpp.
References cd_canvas.
Referenced by getDeviceSizeMM(), and SXYChart::SXYChart().

SXYChart * SXYGraph::getChart ( int i )

Definition at line 317 of file sxy_graph.cpp.
References charts_vector, and SXYVector< SXYChart * >::getElement().
Referenced by drawChartsAt(), fitAllAxis(), fitScales(), getChartOfEvent(), SXYSimpleGraph::getTheChart(), SXYTaskZoomIn::mouseClick(), SXYTaskPickMask::mouseClick(), SXYTaskMovePoint::mouseClick(), SXYTaskMoveLegend::mouseClick(), SXYTaskEditText::mouseClick(), SXYTaskChangeChartColors::mouseClick(), SXYTaskAdjustAxis::mouseClick(), setZoom(), and tryGridAdjust().

int SXYGraph::getChartOfEvent ( int x,

int y

)

Definition at line 371 of file sxy_graph.cpp.
References activateDisplayCanvas(), getChart(), getNumCharts(), and SXYChart::getXyGraph().
Referenced by SXYTaskZoomIn::mouseClick(), SXYTaskPickMask::mouseClick(), SXYTaskMovePoint::mouseClick(), SXYTaskMoveLegend::mouseClick(), SXYTaskEditText::mouseClick(), SXYTaskChangeChartColors::mouseClick(), SXYTaskAdjustAxis::mouseClick(), SXYTaskZoomIn::mouseMotion(), SXYTaskMovePoint::mouseMotion(), SXYTaskMoveLegend::mouseMotion(), SXYTaskZoomIn::mouseUnclick(), SXYTaskMovePoint::mouseUnclick(), and SXYTaskMoveLegend::mouseUnclick().

int SXYGraph::getDeviceSizeMM ( double & w,

double & h

)

Definition at line 109 of file sxy_graph.cpp.
References getCdCanvas().

Ihandle * SXYGraph::getIupCanvas ( void )

Função para consulta do canvas IUP associado ao gráfico.

Returns:
o ponteiro do canvas IUP

Definition at line 103 of file sxy_graph.cpp.
References iup_canvas.
Referenced by SXYTaskZoomIn::mouseClick(), SXYTaskMovePoint::mouseClick(), SXYTaskZoomIn::mouseEnter(), SXYTaskMovePoint::mouseEnter(), SXYTaskZoomIn::mouseLeave(), SXYTaskMovePoint::mouseLeave(), SXYTaskZoomIn::mouseUnclick(), and SXYTaskMovePoint::mouseUnclick().

int SXYGraph::getNumCharts ( void )

Definition at line 324 of file sxy_graph.cpp.
References charts_vector, and SXYVector< SXYChart * >::getLength().
Referenced by drawChartsAt(), fitAllAxis(), fitScales(), getChartOfEvent(), SXYSimpleGraph::remountGraph(), setZoom(), tryGridAdjust(), and SXYSimpleGraph::~SXYSimpleGraph().

int SXYGraph::getNumTasks ( void )

Definition at line 296 of file sxy_graph.cpp.
References SXYVector< SXYTask * >::getLength(), and tasks_vector.
Referenced by iupButtonCallback(), iupEnterCallback(), iupLeaveCallback(), and iupMotionCallback().

SXYTask * SXYGraph::getTask ( int i )

Definition at line 289 of file sxy_graph.cpp.
References SXYVector< SXYTask * >::getElement(), and tasks_vector.
Referenced by iupButtonCallback(), iupEnterCallback(), iupLeaveCallback(), and iupMotionCallback().

SXYGraph * SXYGraph::getThis ( Ihandle * handle ) [static, private]

Definition at line 400 of file sxy_graph.cpp.
Referenced by iupActionCallback(), iupButtonCallback(), iupEnterCallback(), iupLeaveCallback(), iupMotionCallback(), and iupResizeCallback().

void SXYGraph::insertChart ( SXYChart * cht )

Definition at line 331 of file sxy_graph.cpp.
References charts_vector, and SXYVector< SXYChart * >::insertElement().
Referenced by SXYSimpleGraph::remountGraph().

void SXYGraph::insertTask ( SXYTask * tsk )

Definition at line 303 of file sxy_graph.cpp.
References SXYVector< SXYTask * >::insertElement(), and tasks_vector.
Referenced by setStandartTasks().

int SXYGraph::iupActionCallback ( Ihandle * h ) [static, private]

Definition at line 439 of file sxy_graph.cpp.
References getThis(), and redrawGraph().

int SXYGraph::iupButtonCallback ( Ihandle * h,

int b,

int e,

int x,

int y,

char * r

) [static, private]

Definition at line 471 of file sxy_graph.cpp.
References activateDisplayCanvas(), CALLBACK_TREATED, getNumTasks(), getTask(), getThis(), mouseClick(), SXYTask::mouseClick(), mouseUnclick(), and SXYTask::mouseUnclick().

int SXYGraph::iupEnterCallback ( Ihandle * h ) [static, private]

Definition at line 423 of file sxy_graph.cpp.
References CALLBACK_TREATED, getNumTasks(), getTask(), getThis(), mouseEnter(), and SXYTask::mouseEnter().

int SXYGraph::iupLeaveCallback ( Ihandle * h ) [static, private]

Definition at line 406 of file sxy_graph.cpp.
References CALLBACK_TREATED, getNumTasks(), getTask(), getThis(), mouseLeave(), and SXYTask::mouseLeave().

int SXYGraph::iupMotionCallback ( Ihandle * h,

int x,

int y,

char * r

) [static, private]

Definition at line 447 of file sxy_graph.cpp.
References activateDisplayCanvas(), CALLBACK_TREATED, getNumTasks(), getTask(), getThis(), mouseMotion(), and SXYTask::mouseMotion().

int SXYGraph::iupResizeCallback ( Ihandle * h,

int width,

int height

) [static, private]

Definition at line 504 of file sxy_graph.cpp.
References activateDisplayCanvas(), and getThis().

virtual void SXYGraph::mouseClick ( int b,

int x,

int y,

int sft,

int ctr

) [inline, protected, virtual]

Definition at line 72 of file sxy_graph.h.
Referenced by iupButtonCallback().

virtual void SXYGraph::mouseEnter ( void ) [inline, protected, virtual]

Definition at line 75 of file sxy_graph.h.
Referenced by iupEnterCallback().

virtual void SXYGraph::mouseLeave ( void ) [inline, protected, virtual]

Definition at line 76 of file sxy_graph.h.
Referenced by iupLeaveCallback().

virtual void SXYGraph::mouseMotion ( int x,

int y,

int sft,

int ctr

) [inline, protected, virtual]

Definition at line 74 of file sxy_graph.h.
Referenced by iupMotionCallback().

virtual void SXYGraph::mouseUnclick ( int b,

int x,

int y,

int sft,

int ctr

) [inline, protected, virtual]

Definition at line 73 of file sxy_graph.h.
Referenced by iupButtonCallback().

void SXYGraph::printGraph ( int ask,

char * ps_cmd

)

Definition at line 255 of file sxy_graph.cpp.
References drawChartsAt(), and redrawGraph().

void SXYGraph::redrawGraph ( void )

Definition at line 229 of file sxy_graph.cpp.
References drawChartsAt().
Referenced by cb_axis_color(), cb_scale_aligned(), cb_scale_color(), cb_scale_rotated(), cb_title_color(), cb_title_end(), cb_title_end_rotated(), cb_title_middle(), copyGraph(), iupActionCallback(), SXYTaskEditText::mouseClick(), SXYTaskZoomIn::mouseEnter(), SXYTaskMoveLegend::mouseEnter(), SXYTaskZoomIn::mouseLeave(), SXYTaskMovePoint::mouseLeave(), SXYTaskMoveLegend::mouseLeave(), SXYTaskZoomIn::mouseUnclick(), SXYTaskMovePoint::mouseUnclick(), SXYTaskMoveLegend::mouseUnclick(), and printGraph().

virtual void SXYGraph::remountGraph ( void ) [pure virtual]

Implemented in SXYSimpleGraph.

void SXYGraph::removeChart ( SXYChart * cht )

Definition at line 338 of file sxy_graph.cpp.
References charts_vector, and SXYVector< SXYChart * >::removeElement().
Referenced by SXYSimpleGraph::remountGraph().

void SXYGraph::removeTask ( SXYTask * tsk )

Definition at line 310 of file sxy_graph.cpp.
References SXYVector< SXYTask * >::removeElement(), and tasks_vector.

void SXYGraph::setStandartTasks ( void )

Definition at line 345 of file sxy_graph.cpp.
References insertTask().

void SXYGraph::setZoom ( double xratio,

double yratio

)

Definition at line 195 of file sxy_graph.cpp.
References getChart(), getNumCharts(), and SXYChart::setZoom().

void SXYGraph::tryGridAdjust ( )

Definition at line 356 of file sxy_graph.cpp.
References getChart(), getNumCharts(), and SXYChart::tryGridAdjust().

virtual void SXYGraph::updateGraph ( void ) [inline, virtual]

Definition at line 113 of file sxy_graph.h.

Member Data Documentation

cdCanvas* SXYGraph::cd_canvas [private]

Handle do canvas CD (utilizado para desenho).

Definition at line 46 of file sxy_graph.h.
Referenced by getCdCanvas(), SXYGraph(), and ~SXYGraph().

SXYVector<SXYChart*>* SXYGraph::charts_vector [private]

Vetor para a estrutura que armazena os objetos (um gráfico) XY relativos ao gráfico.

Definition at line 40 of file sxy_graph.h.
Referenced by getChart(), getNumCharts(), insertChart(), removeChart(), SXYGraph(), and ~SXYGraph().

Ihandle* SXYGraph::iup_canvas [private]

Handle do canvas IUP (utilizado para interação com o usuário).

Definition at line 49 of file sxy_graph.h.
Referenced by getIupCanvas().

SXYVector<SXYTask*>* SXYGraph::tasks_vector [private]

Vetor para a estrutura que armazena as tarefas associadas ao gráfico.

Definition at line 43 of file sxy_graph.h.
Referenced by getNumTasks(), getTask(), insertTask(), removeTask(), SXYGraph(), and ~SXYGraph().

The documentation for this class was generated from the following files:
