A simple class to represent a natural fracture. More...

#include <xfemFracture.h>

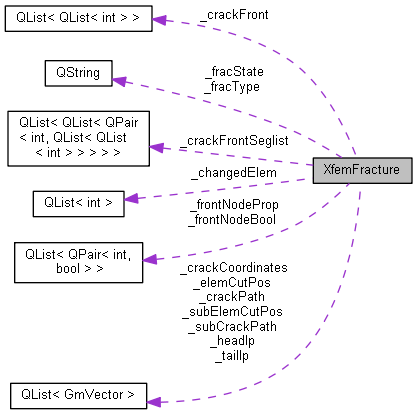

Collaboration diagram for XfemFracture:

[legend]

Public Member Functions
	XfemFracture (int npoints, int ndim, double *coordinates, const QString &fracType=QString("HydraFrac"), const QString &fracState=QString("Open"))
	Constructor for a fracture definition based on a set of points defining its geometry. More...

virtual	~XfemFracture ()
	Destructor.

	XfemFracture (const XfemFracture &other)

int	numPoints () const
	Returns the number of points in the fracture definition.

int	numCrackPoints () const
	Returns the number of crack points into the fracture.

int	numCrackPaths () const
	Return the number of crack paths.

int	numSubCrackPaths () const
	Return the number of sub-crack paths.

int	numElemCutPos () const
	Return the number of elemCutPos vector.

int	numSubElemCutPos () const
	Return the number of subelemCutPos vector.

int	numElemHeadIp () const
	Return the number of elements in headIp.

int	numElemTailIp () const
	Return the number of elements in tailIp.

int	numChangedElem () const
	Return the number of changed elements.

int	numfrontNodeBool () const
	Return the number of crack front node booleans.

int	numfrontNodeProp () const
	Return the number of crack front node that will propagate.

int	pointDimension () const
	Returns the dimension of each fracture point. Equal to the mesh dimension.

void	fixedHead ()
	Set false the activation of head tip.

bool	checkHeadStatus () const
	Check Head activation status.

void	fixedTail ()
	Set false the activation of tail tip.

bool	checkTailStatus () const
	Check tail activation status.

void	headProp (bool setHead=true)
	Set true the propagation of head tip.

bool	checkHeadProp () const
	Check Head Propagation status.

void	tailProp (bool setTail=true)
	Set true the propagation of tail tip.

bool	checkTailProp () const
	Check tail Propagation status.

QString	checkFracType () const
	Check fracture type status.

QString	checkFracState () const
	Check fracture state status. More...

void	setIntactCrackDOFset ()
	Crack DOF set must be changed as this fracture intersect other one or coexist in the same element with other one.

void	changeCrackDOFset ()

bool	checkCrackDOFset () const
	Check crack DOF set status.

const double *	coordinates (int index) const
	Returns a vector with the given point coordinates. The vector size is equal to the mesh dimension. Values are given in the same unit as coordinates are stored in the mesh.

void	appendCrackCoordinates (QList< GmVector > B, bool type=true)

void	insertCrackCoordinates (GmVector C, int index)

void	replaceCrackCoordinates (GmVector B, int index)

void	splitCrackCoordinates (int index2, int index, bool type=true)

virtual void	getCrackCoodinates (GmVector &S1, int n) const

void	appendCrackPath (GmVector Cr, bool type=true)

void	splitCrackPath (int path, int node)

void	insertSubCrackPath (int path, GmVector A, GmVector B)

virtual void	getCrackPath (GmVector &A, int n) const

void	appendSubCrackPath (GmVector Cr, bool type=true)

virtual void	getSubCrackPath (GmVector &A, int n) const

void	appendChangedElem (QList< int > n)

virtual void	getChangedElem (QList< int > &data) const

void	clearChangedElem ()

void	appendCrackFrontNodes (QList< QList< int >> n)

virtual void	getCrackFrontNodes (QList< QList< int >> &data) const

void	replaceCrackFrontNodes (QList< int > n, int index)

void	clearCrackFrontNodes ()

void	appendCrackFrontIp (QList< QList< QPair< int, QList< QList< int >>>>> crackFrontSeglist)

virtual void	getCrackFrontIp (QList< QList< QPair< int, QList< QList< int >>>>> &crackFrontSeglist) const

void	clearCrackFrontIp ()

void	appendFrontNodeBool (QPair< int, bool > n)

virtual void	getFrontNodeBool (int n, QPair< int, bool > &data) const

void	replaceFrontNodeBool (int n, QPair< int, bool > data)

void	clearFrontNodeBool ()

void	appendFrontNodeProp (QPair< int, bool > n)

virtual void	getFrontNodeProp (int n, QPair< int, bool > &data) const

void	replaceFrontNodeProp (int n, QPair< int, bool > data)

void	clearFrontNodeProp ()

void	setHeadIp (QList< GmVector > B)

virtual void	getHeadIp (GmVector &A, int n) const

void	clearHeadIp ()

void	setTailIp (QList< GmVector > B)

virtual void	getTailIp (GmVector &A, int n) const

void	clearTailIp ()

void	appendElemCutPos (GmVector cut, bool type=true)

void	splitElemCutPos (int path, int edge)

virtual void	getElemCutPos (GmVector &S1, int n) const

void	appendSubElemCutPos (GmVector cut, bool type=true)

virtual void	getSubElemCutPos (GmVector &S1, int n) const

void	insertSubElemCutPos (int path, GmVector A, GmVector B)

Private Attributes
int	_npoints
	Number of points in the fracture definition.

int	_ndim
	The dimension of each coordinate.

int	_npointsCrack
	Number of intersection into the mesh for each fracture.

QList< GmVector >	_headIp
	Vector with information about head ip index {elem, ipIndex1, ipIndex2,..}.

QList< GmVector >	_tailIp
	Vector with information about tail ip index {elem, ipIndex1, ipIndex2,..}.

QList< GmVector >	_crackPath
	Vector with information about crak path {elem, ghostNode1, ghostNode2}.

QList< GmVector >	_subCrackPath
	Vector with information about crak path {elem, ghostNode1, ghostNode2} for results visualization.

QList< GmVector >	_elemCutPos
	Vector with information about fracture position {elem, side1, side2}.

QList< GmVector >	_subElemCutPos
	Vector with information about fracture position {elem, side1, side2} for results visualization.

QList< GmVector >	_crackCoordinates
	subCrack coordinates vector. Size = _ndim * _npointsCrack. Values stored by point.

QList< int >	_changedElem
	List with changed elements as fracture propagates.

double *	_coordinates
	Coordinate vector. Size = _ndim * _npoints. Values stored by point.

bool	_isStrongFrac
	Strong fracture (TRUE defines as strong fracture)

bool	_head
	head of the fracture(TRUE defines that it's available to propagate)

bool	_tail
	tail of the fracture(TRUE defines that it's available to propagate)

bool	_headProp
	head of the fracture(TRUE defines that it's going to propagate)

bool	_tailProp
	tail of the fracture(TRUE defines that it's going to propagate)

bool	_changedCrack
	Crack DOF set must be changed as this fracture intersect other one or coexist in the same element with other one.

QString	_fracType

QString	_fracState

QList< QList< int > >	_crackFront
	list with crack front nodes

QList< QList< QPair< int, QList< QList< int > > > > >	_crackFrontSeglist
	list of IP and Element id for the crack front node to the fracture object

QList< QPair< int, bool > >	_frontNodeBool

QList< QPair< int, bool > >	_frontNodeProp

Detailed Description

A simple class to represent a natural fracture.

Constructor & Destructor Documentation

◆ XfemFracture() [1/2]

XfemFracture::XfemFracture	(	int	npoints,
		int	ndim,
		double *	coordinates,
		const QString &	fracType = `QString("HydraFrac")`,
		const QString &	fracState = `QString("Open")`
	)

Constructor for a fracture definition based on a set of points defining its geometry.

Gets as parameters the number of points in the fracture geometry definition, the point dimension and a vector with the point coordinates. The vector size should be equal to nnodes * ndim and the coordinates should be organized inside per point (ex: x1, y1, x2, y2, ..., xn, yn).

IMPORTANT: The fracture takes ownership of the given data vector and will destroy it on its destructor.

◆ XfemFracture() [2/2]

XfemFracture::XfemFracture ( const XfemFracture & other )

inline

< Number of points in the fracture definition

< The dimension of each coordinate

< Number of intersection into the mesh for each fracture

< Vector with information about head ip index {elem, ipIndex1, ipIndex2,..}

< Vector with information about tail ip index {elem, ipIndex1, ipIndex2,..}

< Vector with information about crak path {elem, ghostNode1, ghostNode2}

< Vector with information about sub-crak path {elem, ghostNode1, ghostNode2}

< Vector with information about fracture position {elem, side1, side2}

< Crack coordinates vector. Size = _ndim * _npointsCrack. Values stored by point.

< List with changed elements as fracture propagates

< Strong fracture (TRUE defines as strong fracture)

< head of the fracture(TRUE defines that it's available to propagate)

< tail of the fracture(TRUE defines that it's available to propagate)

< head of the fracture(TRUE defines that it's going to propagate)

< tail of the fracture(TRUE defines that it's going to propagate)

< Coordinate vector. Size = _ndim * _npoints. Values stored by point.

Member Function Documentation

◆ checkFracState()

QString XfemFracture::checkFracState ( ) const

inline

Check fracture state status.

set false to check again if this element changed its Dof Set

The documentation for this class was generated from the following files:

inc/xfemFracture.h
src/xfemFracture.cpp
