GmLuaCellMesh Class Reference

A proxy class to export GmCellMesh methods to the Lua environment. More...

#include <gmLuaMesh.h>

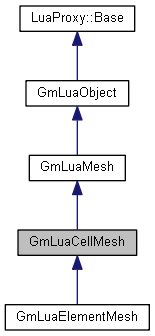

Inheritance diagram for GmLuaCellMesh:

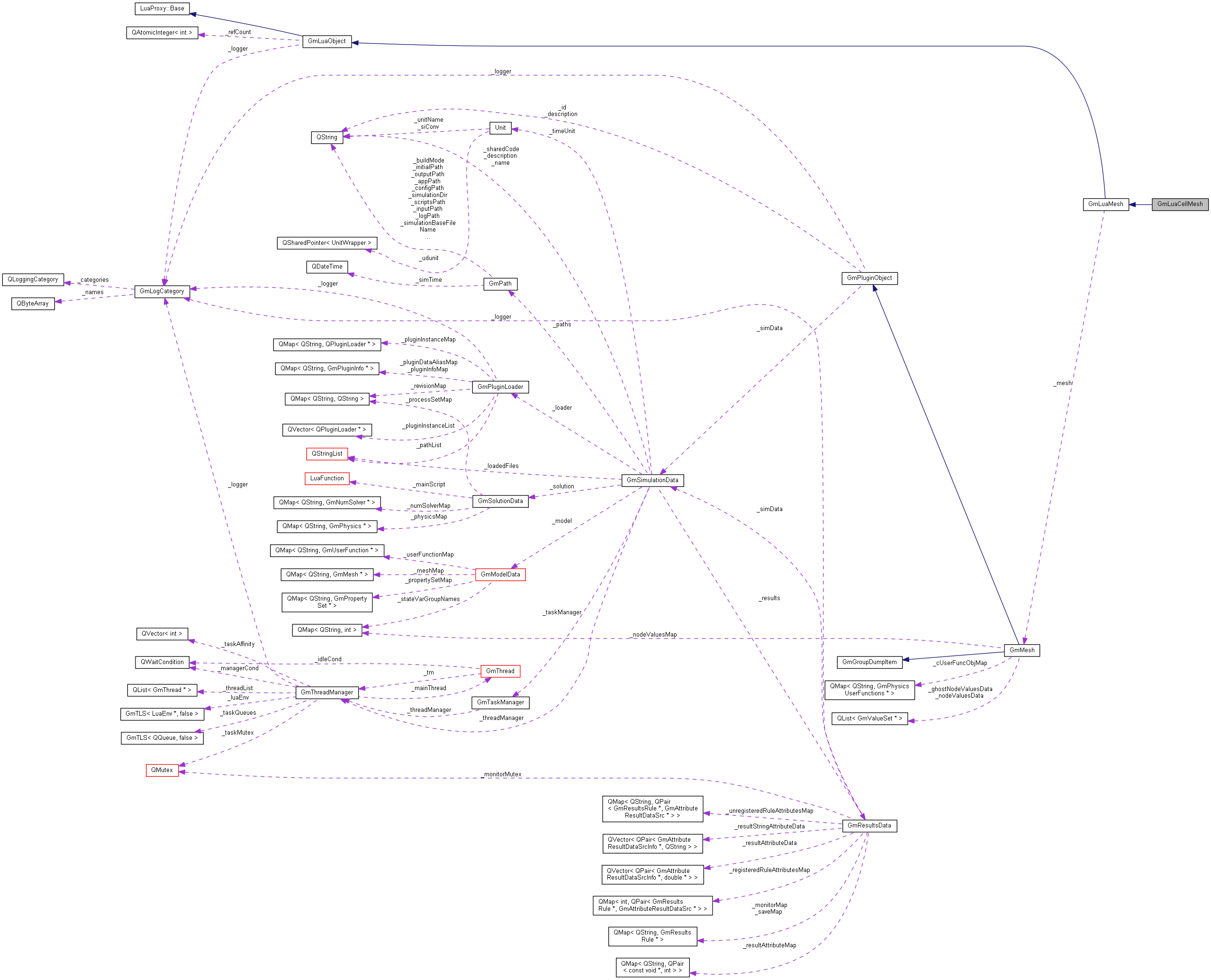

Collaboration diagram for GmLuaCellMesh:

Public Member Functions
	GmLuaCellMesh (GmCellMesh *mesh, const GmLogCategory &logger)
	Constructor.
virtual const char *	typeName () const
	Returns the object type as will be stored in the object metatable.
virtual void	fillMetatable (lua_State *L, int index)
	Prepares the object metatable for calling methods.
virtual void *	getClassMetatableID ()
	Returns an unique identifier to identify an user object as a GmLuaMesh object.
Public Member Functions inherited from GmLuaMesh
	GmLuaMesh (GmMesh *mesh, const GmLogCategory &logger)
	Constructor. Receives the mesh to be wrapped.
virtual	~GmLuaMesh ()
	Destructor.
virtual QString	toString () const
	Default method used by the __tostring metamethod to capture the result of tostring() over an object.
GmMesh *	mesh () const
	Returns the wrapped mesh.
Public Member Functions inherited from GmLuaObject
virtual	~GmLuaObject ()
	Destrutor.
virtual void	populateMetatable (lua_State *L, int index)
	Fills the object metatable to allow for the proxy to export its methods.
QVariant	ptrToVariant ()
	Constructs a QVariant storing a POINTER to the current object.
void	ref ()
	Increments the object reference count. Use with care.

Private Member Functions
int	numCells (lua_State *L)
	Returns the number of cells in this mesh.
int	numActiveCells (lua_State *L)
	Returns the number of active cells in this mesh.
int	cell (lua_State *L)
	Returns a cell object given the cell index inside the mesh. More...
int	adjacentCell (lua_State *L)
	Returns a cell object that is adjacent to a given cell through a given side (edge for surface meshes, face for solid meshes). Also returns as a second value the side from the adjacent cell. More...
int	nodeAdjacentNodes (lua_State *L)
	Returns the list of adjacent nodes that neigbours the given node. A second string parameter defines the query options and can be either "star" or "qstar". If not given, the "star" default is used. More...
int	nodeAdjacentCells (lua_State *L)
	Returns the list of adjacent cells that shares the given node. More...
int	edgeAdjacentCells (lua_State *L)
	Returns the list of adjacent cells that shares the given edge, identified by a cell and a local edge index. The returned list includes the original input cell.
int	isBorderNode (lua_State *L)
	Returns true if the given node belongs to the mesh border.
int	clearTopology (lua_State *L)
	Gives a hint to the mesh that the topology information will not be needed anymore and can be removed, if at all possible.
int	numCellTypes (lua_State *L)
	Returns a table specifying the number of cells in the mesh for each cell type. More...
int	numActiveCellTypes (lua_State *L)
	Returns a table specifying the number of active cells in the mesh for each cell type. More...
int	maxNumCellNodes (lua_State *L)
	Returns the maximum number of nodes among the cell types in use on this mesh.
int	maxNumCellGhostNodes (lua_State *L)
	Returns the maximum number of ghost nodes among the cells on this mesh.
int	maxTotalNumCellNodes (lua_State *L)
	Returns the maximum total number of nodes (common + ghost) among the cells on this mesh.
int	isValid (lua_State *L)
	Returns true if all the mesh cells are valid.
int	edgeMinLength (lua_State *L)
	Returns the minimum edge length in the mesh. More...
int	edgeMaxLength (lua_State *L)
	Returns the maximun edge length in the mesh. More...
int	cellBboxMinLength (lua_State *L)
	Returns the minimun length of a cell bounding box diagonal in the mesh.
int	cellBboxMaxLength (lua_State *L)
	Returns the maximun length of a cell bounding box diagonal in the mesh.
int	clearCellStatistics (lua_State *L)
	Clear cell statistics, forcing them to be recalculated.
int	printQualityHistogram (lua_State *L)
	Prints cells quality histogram.
int	cellGroupIds (lua_State *L)
	Returns a table with cell group names.
int	cellGroupIndex (lua_State *L)
	Returns the group index for a given group name or nil if not found.
int	numCellsInGroup (lua_State *L)
	Given a cell group index (position in list returned by cellGroupIds()), returns the number of elements in a group.
int	cellInGroup (lua_State *L)
	Given a cell group index (position in list returned by cellGroupIds()) and a cell index inside the group (betwwen 1 and numCellsInGroup()), returns a cell object.
int	cellBoundaryGroups (lua_State *L)
	Returns a table indexed by boundary group names, with cell boundary objects.
int	numPropertySets (lua_State *L)
	Returns the number of property sets associated to this mesh.
int	propertySets (lua_State *L)
	Returns a list with property cell objects tied to this mesh.
int	propertySetIndex (lua_State *L)
	Returns the index in the list returned by propertySets(), of the property set that contains the given property (identified by its id). Returns nil if the requested property does not exist. More...
int	cellPropertyInfo (lua_State *L)
	Returns a GmLuaValueInfo object with information about the requested property. Returns nil if the requested value does not exist. More...
int	cellPropertyAccessor (lua_State *L)
	Returns an accessor object for querying property values or nil on error. More...
int	cellAttributeIds (lua_State *L)
	Returns a table with a list of cell attribute ids associated to this mesh.
int	cellAttributeInfo (lua_State *L)
	Returns a GmLuaValueInfo object with information about the requested cell attribute. Returns nil if the requested value does not exist. More...
int	cellAttributeAccessor (lua_State *L)
	Returns an accessor object for querying cell attributes or nil on error. More...
int	addCellAttributeSet (lua_State *L)
	Adds a new cell value set to the mesh. More...
int	removeCellAttributeSet (lua_State *L)
	Tries to remove a cell attribute set stored in the mesh.
int	clearCellAttributeSets (lua_State *L)
	Removes the cell attribute sets stored in the mesh.
int	saveCellAttributeState (lua_State *L)
	Saves the state of the given cell value. Receives as parameter the value id and a string describing the save mode ('init', 'noinit' or 'copy'). Returns true if successfull.
int	numCellAttributeStates (lua_State *L)
	Returns the number of existing states for the requested id or -1 if the id doesn't exists.
int	cellAttributeStateTag (lua_State *L)
	Returns the state tag attached to the requested state of the named value or "" if the id doesn't exists.
int	cellAttributeStateTime (lua_State *L)
	Returns the time tag attached to the requested state of the named value or -1 if the id doesn't exists.
int	setCellAttributeStateTag (lua_State *L)
	Sets a tag name for the requested state of the named value. Does nothing if the id doesn't exists.
int	setCellAttributeStateTime (lua_State *L)
	Sets a time tag for the requested state of the named value. Does nothing if the id doesn't exists.
int	addCells (lua_State *L)
	Given a map describing the type and quantity of the cells to insert, add them to the mesh. Returns the index of the first new value. More...
int	addCellGroup (lua_State *L)
	Adds a new cell group to the mesh if the "editGroups" capability is supported. Receives the group name as parameter. Returns the new group index or nil if it. More...
int	addCellsToGroup (lua_State *L)
	Adds a list of cells to the given cell group (identified by its index). Added cells can be given as either a table with cell ids or a table with subtables containing id ranges. Requires support for the the "editGroups" capability. returns true on succes, false on error.

Additional Inherited Members
Protected Member Functions inherited from GmLuaObject
	GmLuaObject (const GmLogCategory &logger)
	Construtor protegido. Somente classes derivadas devem ser instanciadas.
Protected Attributes inherited from GmLuaMesh
GmMesh *	_mesh
	The mesh 'wrapped' by this proxy object.
Protected Attributes inherited from GmLuaObject
const GmLogCategory &	_logger
	A logger used by the proxy when needed.
QAtomicInteger< int >	_refCount
	Lua objects are reference counted to enable sharing them among different states. This is needed to allow for passing objects as parameters in a parallel call. The garbage collection method releases memory only for the last reference.

Detailed Description

A proxy class to export GmCellMesh methods to the Lua environment.

Member Function Documentation

addCellAttributeSet()

int GmLuaCellMesh::addCellAttributeSet ( lua_State *  L )

private

Adds a new cell value set to the mesh.

Receives on the stack a valueInfo object with the description of the new cell attribute. Keep in mind that this should be a NEW valueInfo object since the mesh will take ownership of the info object.

Returns false if the value could not be added.

addCellGroup()

int GmLuaCellMesh::addCellGroup ( lua_State *  L )

private

Adds a new cell group to the mesh if the "editGroups" capability is supported. Receives the group name as parameter. Returns the new group index or nil if it.

could not be created

addCells()

int GmLuaCellMesh::addCells ( lua_State *  L )

private

Given a map describing the type and quantity of the cells to insert, add them to the mesh. Returns the index of the first new value.

The map received as parameter should be indexed by type name, having as value the number of cells of that type

adjacentCell()

int GmLuaCellMesh::adjacentCell ( lua_State *  L )

private

Returns a cell object that is adjacent to a given cell through a given side (edge for surface meshes, face for solid meshes). Also returns as a second value the side from the adjacent cell.

The original cell can be specified either by an id or by a cell object Returns nil if there is no adjacent cell, i.e., side is part of the mesh boundary. Also returns nil for "strange" elements that don't have topology information (non-manifold elements like bars for a surface mesh and bars, quads and triangles for solid meshes). Following Lua tradition, the index is one based

cell()

int GmLuaCellMesh::cell ( lua_State *  L )

private

Returns a cell object given the cell index inside the mesh.

Following Lua tradition, the index is one based

cellAttributeAccessor()

int GmLuaCellMesh::cellAttributeAccessor ( lua_State *  L )

private

Returns an accessor object for querying cell attributes or nil on error.

Receives as stack parameter the name of the desired cell attribute and, optionally, the unit in which values should be returned. A third optional parameter defines the state to be queried

cellAttributeInfo()

int GmLuaCellMesh::cellAttributeInfo ( lua_State *  L )

private

Returns a GmLuaValueInfo object with information about the requested cell attribute. Returns nil if the requested value does not exist.

Receives as stack parameter the name of the desired cell attribute

cellPropertyAccessor()

int GmLuaCellMesh::cellPropertyAccessor ( lua_State *  L )

private

Returns an accessor object for querying property values or nil on error.

Receives as stack parameter the name of the desired property and, optionally, the unit in which values should be returned

cellPropertyInfo()

int GmLuaCellMesh::cellPropertyInfo ( lua_State *  L )

private

Returns a GmLuaValueInfo object with information about the requested property. Returns nil if the requested value does not exist.

Receives as stack parameter the name of the desired property

edgeMaxLength()

int GmLuaCellMesh::edgeMaxLength ( lua_State *  L )

private

Returns the maximun edge length in the mesh.

IMPORTANT: only works well with linear cells

edgeMinLength()

int GmLuaCellMesh::edgeMinLength ( lua_State *  L )

private

Returns the minimum edge length in the mesh.

IMPORTANT: only works well with linear cells

nodeAdjacentCells()

int GmLuaCellMesh::nodeAdjacentCells ( lua_State *  L )

private

Returns the list of adjacent cells that shares the given node.

Following Lua tradition, the index is one based

nodeAdjacentNodes()

int GmLuaCellMesh::nodeAdjacentNodes ( lua_State *  L )

private

Returns the list of adjacent nodes that neigbours the given node. A second string parameter defines the query options and can be either "star" or "qstar". If not given, the "star" default is used.

Following Lua tradition, the index is one based

numActiveCellTypes()

int GmLuaCellMesh::numActiveCellTypes ( lua_State *  L )

private

Returns a table specifying the number of active cells in the mesh for each cell type.

The tabled is keyed by the cell type (string). Only the types used in the mesh have entries set in the result table.

numCellTypes()

int GmLuaCellMesh::numCellTypes ( lua_State *  L )

private

Returns a table specifying the number of cells in the mesh for each cell type.

The tabled is keyed by the cell type (string). Only the types used in the mesh have entries set in the result table.

propertySetIndex()

int GmLuaCellMesh::propertySetIndex ( lua_State *  L )

private

Returns the index in the list returned by propertySets(), of the property set that contains the given property (identified by its id). Returns nil if the requested property does not exist.

Receives as stack parameter the name of the desired property

---

The documentation for this class was generated from the following files:

• inc/gmLuaMesh.h
• src/gmLuaMesh.cpp
