A class used to return static metadata information about a cell geometry, along with some methods for calculating geometric properties for a cell, given its coordinate matrix. More...
#include <gmCellGeometry.h>
Public Member Functions | |
| GmCellGeometry (GmCellType type, int P=0, int Q=0) | |
| Constructor. Receives the cell type for which geometry information will be returned. P and Q are needed only when working with hierarchical element types, where they are used together with the shape and integration rule factories. It is safe to create a geometry object with P & Q == 0, even for hierarchical types, if you are never going tocall the shape or integration rule factory functions. | |
| GmCellType | type () const |
| Return the cell type associated to this object. | |
| const char * | typeName () const |
| Returns the type name. | |
| GmCellFamilyType | family () const |
| Returns the family to which this cell type belongs. | |
| bool | isInterface () const |
| Returns true if this is an interface element, false otherwise. | |
| bool | isHierarchical () const |
| Returns true if this is a hierarchical element, false otherwise. | |
| int | order () const |
| Returns the cell interpolation order(1 = linear, 2 = quadratic, 3 = cubic, ...) | |
| GmCellType | linearElement () const |
| Returns the type of the equivalent linear element (for a Quad9, returns a Quad4, for example). | |
| int | numNodes () const |
| Returns the total number of nodes of this cell type. | |
| int | numVertices () const |
| Returns the number of vertices of this cell type. This excludes center edge and face nodes - returns 4 for a quad8, for example. It also excludes additional dof nodes. More... | |
| int | numExtraDofNodes () const |
| Returns the number of extra degrees of freedom (dof) nodes. This is usually 0, except for some kinds of interface elements. See also comments on numVertices(). | |
| int | numCoord () const |
| Returns the size of the cartesian coordinates for this cell type. | |
| int | numEdges () const |
| Returns the number of edges of this cell type. | |
| int | numFaces () const |
| Returns the number of faces of this cell type (0 for "bar" alike cells, 1 for surface cells) | |
| bool | isLine () const |
| Is this element an 1D "line" ? | |
| bool | isSurface () const |
| Is this element an 2D "surface". | |
| bool | isSolid () const |
| Is this element an 3D "solid"? | |
| int | numEdgeNodes (int edgeIndex) const |
| Returns the number of nodes in the cell's edge numbered edgeIndex (edgeIndex from 0 to numEdges()-1) | |
| int | edgeNode (int edgeIndex, int i) const |
| Returns the ith node belonging to edge edgeIndex. More... | |
| int | firstEdgeNode (int edgeIndex) const |
| Returns the first node in the cell's edge numbered edgeIndex (edgeIndex from 0 to numEdges()-1) Equivalent to edgeNode(edgeIndex, 0) | |
| int | lastEdgeNode (int edgeIndex) const |
| Returns the last node in the cell's edge numbered edgeIndex (edgeIndex from 0 to numEdges()-1) Equivalent to edgeNode(edgeIndex, numEdgeNodes()-1) | |
| bool | nodeOnEdge (int nodeIndex, int edgeIndex) const |
| Returns true if the given (local) node index belongs to the given edge definition. | |
| int | edgeFromNodes (int n1, int n2) const |
| Returns the edge index of the edge starting with n1 and ending with n2 or vice-versa. Both n1 and n2 should be local node indices. Returns -1 if the two local nodes do not define an element edge. | |
| int | numFaceEdges (int faceIndex) const |
| Returns the number of edges in the cell's face numbered faceIndex (faceIndex from 0 to numFaces()-1) | |
| int | faceEdge (int faceIndex, int i) const |
| Returns the ith edge belonging to face faceIndex. More... | |
| int | numEdgeFaces (int edgeIndex) const |
| Returns the number of faces in the cell's edge numbered edgeIndex (edgeIndex from 0 to numEdges()-1) | |
| int | edgeFace (int edgeIndex, int i) const |
| Returns the ith face belonging to edge edgeIndex. More... | |
| int | numFaceBoundaryNodes (int faceIndex) const |
| Returns the number of boundary nodes in the cell's face numbered faceIndex (faceIndex from 0 to numFaces()-1). This node count excludes internal face nodes. | |
| int | numFaceNodes (int faceIndex) const |
| Returns the number of nodes in the cell's face numbered faceIndex (faceIndex from 0 to numFaces()-1) | |
| int | faceNode (int faceIndex, int i) const |
| Returns the ith node belonging to the face faceIndex. Since boundary nodes are always returned first by this function, it can be used to retrieve all nodes or just the boundary ones. More... | |
| int | numIncidenceNodes (int nodeIndex) const |
| Returns the number of incident nodes into the cell's node numbered nodeIndex (nodeIndex from 0 to numNodes()-1) | |
| int | incidenceNode (int nodeIndex, int i) const |
| Returns the ith incidence node belonging to node nodeIndex. More... | |
| int | numVolumeInternalNodes () const |
| Returns the number of internal nodes of this volume's cell type. Returns 0 for 1d/2d cells. | |
| int | volumeInternalNode (int i) const |
| Returns the ith internal node belonging to the volume. More... | |
| int | numFaceTypes () const |
| Returns the number of face types for a 3D element (generally 1), 1 for 2D elements and 0 for 1D elements. More... | |
| GmCellFaceType | faceType (int faceIndex) const |
| Returns the face type for the cells face numbered faceIndex (faceIndex from 0 to numFaces()-1) | |
| GmCellType | edgeElement (int edgeIndex) const |
| Returns the type of the equivalent Bar element (with either 2D or 3D coordinates) for an elements edge (edgeIndex from 0 to numEdges()-1). Returns GM_INV_CELL_TYPE for line elements. | |
| GmCellType | faceElement (int faceIndex) const |
| Returns the type of the equivalent surface element (with 3D node coordinates) for a 3D element's face (faceIndex from 0 to numFaces()-1). Returns GM_INV_CELL_TYPE for line or surface elements. | |
| int | edgeElementNode (int edgeIndex, int i) const |
| Returns the ith node belonging to the edge edgeIndex using the equivalent linear element (returned by edgeElement()) node ordering. More... | |
| int | faceElementNode (int faceIndex, int i) const |
| Returns the ith node belonging to the face faceIndex using the equivalent surface element (returned by faceElement()) node ordering. More... | |
| GmCellType | edgeLinearElement (int edgeIndex) const |
| Returns the equivalent linear element of the given element's edge. | |
| GmCellType | faceLinearElement (int faceIndex) const |
| Returns the equivalent linear element of the given element's face. | |
| double | length (const GmMatrix &X) const |
| Returns the length of a bar element with nodes defined by the X matrix (with node coordinates organized by column). Can also be used for calculating the length of a 2D interface element (the length is calculated at the average "plane" between the interface element edges) More... | |
| double | area (const GmMatrix &X) const |
| Returns the area of a 2D element with nodes defined by the X matrix (with node coordinates organized by column). Can also be used for calculating the area of a 3D interface element (the area is calculated at the average "plane" between the interface element faces) More... | |
| double | volume (const GmMatrix &X) const |
| Returns the volume of a 3D element with nodes defined by the X matrix (with node coordinates organized by column) More... | |
| double | characteristicLength (const GmMatrix &X) const |
| Returns the cell characteristic length, defined as the length for 1D and 2D interface elements, the square root of the area for non iterface 2D and 3D interface elements and the cubic root of the volume for non interface 3D elements. | |
| double | characteristicDimension (const GmMatrix &X) const |
| Returns the cell characteristic dimension, defined as the length for 1D and 2D interface elements, the area for non iterface 2D and 3D interface elements and the volume for non interface 3D elements. | |
| void | centroidCartesian (const GmMatrix &X, GmVector &coord) const |
| Fills the coord vector with the cartesian coordinates of the cell centroid, with nodes defined by the X matrix (with node coordinates organized by column). The coord vector will have size equal to the number of rows in the matrix. More... | |
| bool | hasCapability (GmCellGeometryCapabilities capability) const |
| Returns true if this cell type implements the geometric related capability described by the given paramter. Unlike mesh capabilities, the query possibilities are given by the GmCellGeometryCapabilities enum iinstead of by a string (this happends since this are core capabilities, not suited to be extended by plugin provided capabilities). | |
| bool | isValid (const GmMatrix &X, double tol) const |
| double | quality (const GmMatrix &J, double tol) const |
| Returns a normalized quality measure of the cell geometry, from 0 to 1, where 0.0 means very bad and 1.0 very good. If the GM_CELL_GEOMETRY_QUALITY capability is not implemented, this function simply returns 0.0. The J matrix is the Jacobian. | |
| bool | contains (const GmMatrix &X, const GmVector &coord) const |
| Returns true if the cell contains the point specified by the given cartesian coordinates 'coord'. If the GM_CELL_GEOMETRY_CONTAINS capability is not implemented, this function simply returns false. The X matrix holds the cell node coordinates organized by column. | |
Static Public Member Functions | |
| static int | maxNumNodes () |
| A static function that returns the maximum number of nodes among all known cell types. | |
| static const char * | familyTypeToStr (GmCellFamilyType family) |
| Converts a cell family type to a string. | |
| static int | strToFamilyType (QString str) |
| Converts a string to a cell family type. Returns -1 if no match is found. | |
| static const char * | faceTypeToStr (GmCellFaceType type) |
| Converts a cell face type to a string. | |
| static int | strToFaceType (QString str) |
| Converts a string to a cell face type. Returns -1 if no match is found. | |
| static void | registerCellType (const GmCellGeometryInfo *cellInfo) |
| Registers a new cell type in the global geometry registry. | |
| static const GmCellGeometryInfo * | geometryInfo (GmCellType type) |
| Returns the geometry info objct associated with type. NOT FOR GENERAL USE. | |
Private Member Functions | |
| GmShape * | shapeInstance () const |
| Shape function factory. Returns a NEW instance of the shape function object for this type. Returns NULL if the type has no associated shape function. | |
| GmIntegrationRule * | integrationRule (GmIntegrationRuleType irType, int rule1=-1, int rule2=-1, int rule3=-1) const |
| A factory function that returns a NEW integration rule object suited for this kind of element. More... | |
| GmBorderIntegrationRule * | edgeIntegrationRule (GmIntegrationRuleType irType, int rule1=-1) const |
| A factory function that returns a NEW border integration rule object suited for this kind of element. Edge rules are used to integrate functions over an element edge. This function is undefined for line elements and will return NULL in those cases. More... | |
| GmBorderIntegrationRule * | faceIntegrationRule (int faceType, GmIntegrationRuleType irType, int rule1=-1, int rule2=-1) const |
| A factory function that returns a NEW border integration rule object suited for this kind of element. Face rules are used to integrate functions over an element face. This function is undefined for line or 2D elements and will return NULL in those cases. More... | |
| GmBorderIntegrationRule * | borderIntegrationRule (int faceType, GmIntegrationRuleType irType, int rule1=-1, int rule2=-1) const |
| Returns a NEW border integration rule object suited for this kind of element. Border rules are used to integrate functions over an element border. That means that for a solid element we want a rule for integrating a face and for a surface element we want a rule to integrate a line. More... | |
| void | checkX (const GmMatrix &X) const |
Static Private Member Functions | |
| static void | checkMetadata (const GmCellGeometryMetadata *data, bool registryFullyInitialised) |
| Performs basic consistency checks for the given metadata object Additional checks for Incidence, Edge and Face compatibility are done by checkGeometryIEFCompatibility() | |
| static void | checkGeometryIEFCompatibility (GmCellType type) |
| Checks that the edges, faces and node incidence informations are compatible among themselves. | |
| static void | checkElementRegistry () |
| Perform a full consistency check for all registered elements. | |
Private Attributes | |
| const GmCellGeometryInfo * | _info |
| The pointer to the cell geometry info object storing the cell type metadata. | |
| int | _P |
| int | _Q |
| The P & Q parameters for hierarchical element types. 0 otherwise. | |
Static Private Attributes | |
| static const GmCellGeometryInfo * | _infoRegistry [GM_NUM_CELL_TYPES] |
| The global registry with each cell type geometry info. More... | |
| static int | _maxNumNodes = 0 |
| The maximum number of nodes among all registered cell types. More... | |
Friends | |
| class | GmShape |
| class | GmIntegrationRule |
| class | GmBorderIntegrationRule |

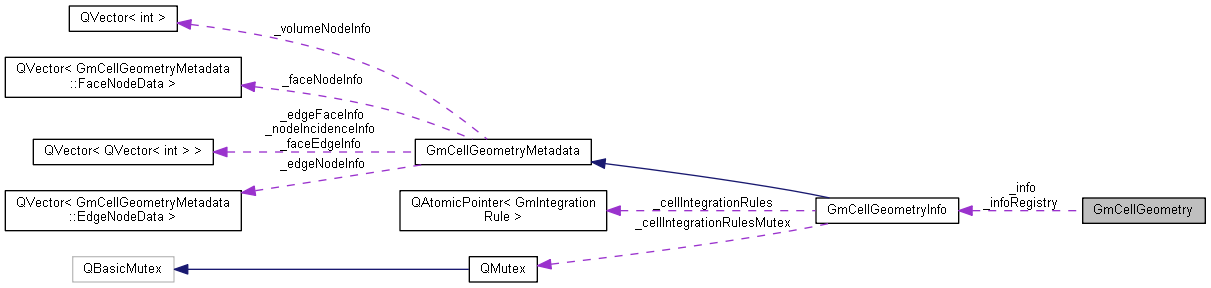

A class used to return static metadata information about a cell geometry, along with some methods for calculating geometric properties for a cell, given its coordinate matrix.
Creating a cell geometry object is fast, so it can be created freely on stack from the cell type. For historical reasons, it's implementation is a wrapper storing a pointer to a (unique) GmCellGeometryInfo object that contains the cell type metadata + specific geometric methods. In user code, one should always use a GmCellGeometry object instead of a GmCellGeometryInfo one.
The cell geometry object also serves as a connecting bridge between the cell type and its associated shape and integration rule classes. This is done by a set of factory functions that are used by GmShape and GmIntegration rule factory functions to associate a type with a specific shape function class or integratio rule class. This factory functions are not for general use though.
When creating new cell types, the added cell should be registered with a call to GmCellGeometry::registerCellType().
As a general rule, while decribing the cyclic order of nodes inside edges or faces, GeMA always uses the CCW (counter clock-wise) convention and references "linear nodes" before "quadratic nodes", "quadratic nodes" before "cubic nodes", etc... This particular ordering is used to facilitate several algorithms in the topological mesh implementation and also while implementing super-parametric physics elements. Also, for 2D elements, edge numbering follows the number of its first node.
IMPORTANT: Please keep in mind that the following documentation is a C++ reference, and so node, edge and face numbering starts with 0 and not 1. When using this documentation in Lua for building simulation models, please consider that while referencing an edge or face number, you should add one to the values seen in here (i.e. the edge between the first and second nodes of a quad4 is edge 1 in Lua and not edge 0 as in C++).
Coordinate systems:
2D:
|y | | |________x
3D:
|z /y | / | / |/________x
|
inline |
Returns the area of a 2D element with nodes defined by the X matrix (with node coordinates organized by column). Can also be used for calculating the area of a 3D interface element (the area is calculated at the average "plane" between the interface element faces)
Returns 0.0 for 1D, 2D interface elements and 3D (non interface) elements.
| X | The cell's node matrix. Can be created by calling GmCell::fillNodeMatrix(coordAc, X, true) |
|
inlineprivate |
Returns a NEW border integration rule object suited for this kind of element. Border rules are used to integrate functions over an element border. That means that for a solid element we want a rule for integrating a face and for a surface element we want a rule to integrate a line.
For 2D elements it is equivalent to edgeIntegrationRule() and for 3D elements to faceIntegrationRule(). This function is undefined for line elements. See the description of the aforementioned functions for details on the parameters.
Fills the coord vector with the cartesian coordinates of the cell centroid, with nodes defined by the X matrix (with node coordinates organized by column). The coord vector will have size equal to the number of rows in the matrix.
By definition, the centroid is the point defined by the arithmetic mean position of all the points of the element. If coord holds a vector created by DECLARE_REF_VECTOR(), its size MUST already be equal to the expected result size. Whenever possible, the centroid is calculated geometrically. For quadratic elements, the calculation is done by numeric integration. If the cell type is an interface element, the centroid will be calculated at the average "plane" between the interface element edges/faces.
| X | The cell's node matrix. Can be created by calling GmCell::fillNodeMatrix(coordAc, X, true) |
| coord | The vector filled with the centroid cartesian coordinates |
|
inline |
Returns the ith node belonging to the edge edgeIndex using the equivalent linear element (returned by edgeElement()) node ordering.
IMPORTANT: The result of this function is undefined if edgeElement(edgeIndex) returns GM_INV_CELL_TYPE.
Returned values are local indices. The parameter edgeIndex should be in the range 0..numEdges()-1 The parameter i should be in the range 0..GmCellGeometry(edgeElement(edgeIndex)).numNodes()-1
|
inline |
Returns the ith face belonging to edge edgeIndex.
Returned values are local indices according to the element definition. The parameter edgeIndex should be in the range 0..numEdges()-1 The parameter i should be in the range 0..numEdgeFaces(edgeIndex)-1
|
inlineprivate |
A factory function that returns a NEW border integration rule object suited for this kind of element. Edge rules are used to integrate functions over an element edge. This function is undefined for line elements and will return NULL in those cases.
Parameter irType defines the kind on integration rule that should be used (Gauss or Lobatto, for example). Parameter rule1 is used to pass an specific rule type for derived classes and will be ignored if irrelevant. A value of -1 means that the rule parameter is unused.
If the given parameters are different from -1 and do not express a valid rule, or irType is not valid or unimplemented for this kind of element, returns NULL. In particular, this routine will return a default (valid) rule for the element when called with irType == auto and all rule values equal to -1.
|
inline |
Returns the ith node belonging to edge edgeIndex.
Returned values are local indices. Extremes (i = 0 and i == numEdgeNodes()-1) are the edge vertices. The parameter edgeIndex should be in the range 0..numEdges()-1 The parameter i should be in the range 0..numEdgeNodes(edgeIndex)-1
|
inline |
Returns the ith edge belonging to face faceIndex.
Returned values are local indices according to the element definition. The parameter faceIndex should be in the range 0..numFaces()-1 The parameter i should be in the range 0..numFaceEdges(faceIndex)-1
|
inline |
Returns the ith node belonging to the face faceIndex using the equivalent surface element (returned by faceElement()) node ordering.
IMPORTANT: The result of this function is undefined if faceElement(faceIndex) returns GM_INV_CELL_TYPE.
Returned values are local indices. The parameter faceIndex should be in the range 0..numFaces()-1 The parameter i should be in the range 0..GmCellGeometry(faceElement(faceIndex)).numNodes()-1
|
inlineprivate |
A factory function that returns a NEW border integration rule object suited for this kind of element. Face rules are used to integrate functions over an element face. This function is undefined for line or 2D elements and will return NULL in those cases.
The faceType parameter can be used to identify the desired face type for elements with more than one face type (like a wedge that has 3 quadrilateral faces and 2 triangular faces). In that case, faceType should be a GmCellFaceType value. If the element has only one face type, -1 can be passed to the faceType parameter (if the value is not -1, it MUST be equal to one of the type's face type).
Parameter irType defines the kind on integration rule that should be used (Gauss or Lobatto, for example). Parameters rule1 and rule2 are used to pass an specific rule type for derived classes and will be ignored if irrelevant. A value of -1 means that the rule parameter is unused.
If the given parameters are different from -1 and do not express a valid rule, or irType is not valid or unimplemented for this kind of element, returns NULL. In particular, this routine will return a default (valid) rule for the element when called with irType == auto and all rule values equal to -1.
|
inline |
Returns the ith node belonging to the face faceIndex. Since boundary nodes are always returned first by this function, it can be used to retrieve all nodes or just the boundary ones.
Returned values are local indices. The parameter faceIndex should be in the range 0..numFaces()-1 The parameter i should be in the range 0..numFaceNodes(faceIndex)-1
|
inline |
Returns the ith incidence node belonging to node nodeIndex.
Returned values are local indices. The parameter nodeIndex should be in the range 0..numNodes()-1 The parameter i should be in the range 0..numIncidenceNodes(nodeIndex)-1
|
inlineprivate |
A factory function that returns a NEW integration rule object suited for this kind of element.
Parameter irType defines the kind on integration rule that should be used (Gauss or Lobatto, for example). Parameters rule1, rule2 and rule3 are used to pass an specific rule type for derived classes and will be ignored if irrelevant. A value of -1 means that the rule parameter is unused.
If the given parameters are different from -1 and do not express a valid rule, or irType is not valid or unimplemented for this kind of element, returns NULL. In particular, this routine will return a default (valid) rule for the element when called with irType == auto and all rule values equal to -1.
|
inline |
Performs some geometry checks, like orientation, convexity or self intersection checks to check a cell validity. If the GM_CELL_GEOMETRY_VALID capability is not implemented, this function simply returns true. The X matrix holds the cell node coordinates organized by column.
|
inline |
Returns the length of a bar element with nodes defined by the X matrix (with node coordinates organized by column). Can also be used for calculating the length of a 2D interface element (the length is calculated at the average "plane" between the interface element edges)
Returns 0.0 for 2D (non interface) and 3D elements.
| X | The cell's node matrix. Can be created by calling GmCell::fillNodeMatrix(coordAc, X, true) |
|
inline |
Returns the number of face types for a 3D element (generally 1), 1 for 2D elements and 0 for 1D elements.
In general, 3D elements have a single face type (QUAD for hexahedrons, TRI for tetrahedrons), but some special elements might have heterogeneous face types, like a wedge, combining quadrilateral and triangular faces.
|
inline |
Returns the number of vertices of this cell type. This excludes center edge and face nodes - returns 4 for a quad8, for example. It also excludes additional dof nodes.
In practice, for linear elements, numNodes() == numVertices() + numExtraDofNodes(). Also, if the element is NOT linear, its number of vertices should be the same as the number of vertices for its equivalent linear element. At present, this is also expected for the number of extra dof nodes.
|
inline |
Returns the volume of a 3D element with nodes defined by the X matrix (with node coordinates organized by column)
Returns 0.0 for 1D, 2D and 3D interface elements.
| X | The cell's node matrix. Can be created by calling GmCell::fillNodeMatrix(coordAc, X, true) |
|
inline |
Returns the ith internal node belonging to the volume.
Returned values are local indices. The parameter i should be in the range 0..numVolumeInternalNodes()-1
|
staticprivate |
The global registry with each cell type geometry info.
The global cell geometry info registry vector. Static initialized to NULL and so already available during dynamic initialization steps where registerCellType() can be called.
|
staticprivate |
The maximum number of nodes among all registered cell types.
The maximum number of nodes among all known cell types. Initialized by the cell registering process.
1.8.15
