e-Mohr - Mohr's Circle for Plane Stress State

[ Portuguese ]


Pontifical Catholic University of Rio de Janeiro - PUC-Rio
Department of Civil Engineering
Copyright: Luiz Fernando Martha,
Alonso Juvinao Carbono, Anderson Resende Pereira,
Fernando Busato Ramires, Paôla Reginal Dalcanal, and
Ricardo Rodrigues de Araujo
Version 1.00, September 2004


This program demonstrates the behavior of the Mohr's circle for plane stress state.
It was developed as the final project of course CIV 2802 - Engineering Graphics Systems, PUC-Rio, during the first semester of 2004.


[ Off-line version | On-line version | Sign Convention | Mohr's Circle | The Pole | Control Points | Software Documentation ]

Installation requirement

This software was developed in Java 2 and requires the installation of
JRE - Java(TM) 2 Runtime Enviroment, including Java Plug-in.
This is available in the following URL address:
http://java.sun.com/products/archive/j2se/1.4.2_04/index.html
The installation software for MS-Windows is also available by FTP:
http://www.tecgraf.puc-rio.br/ftp_pub/lfm/j2re-1_4_2_04-windows-i586-p.exe.

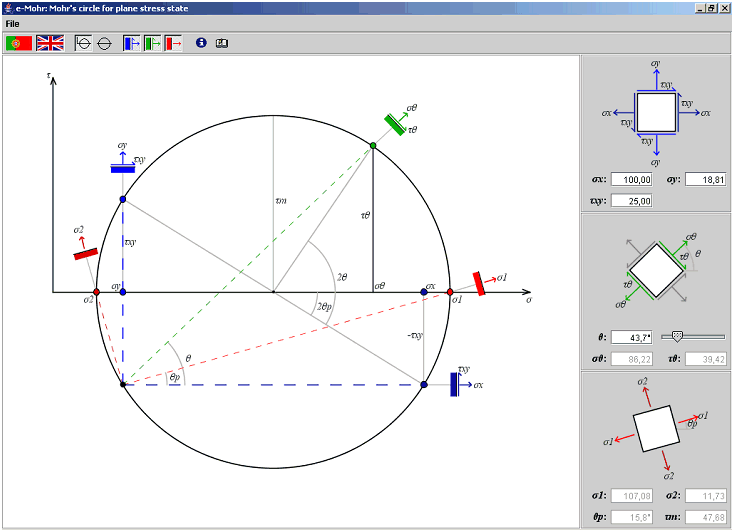

Image of e-Mohr off-line version


Download of e-Mohr off-line version


Run e-Mohr on-line version

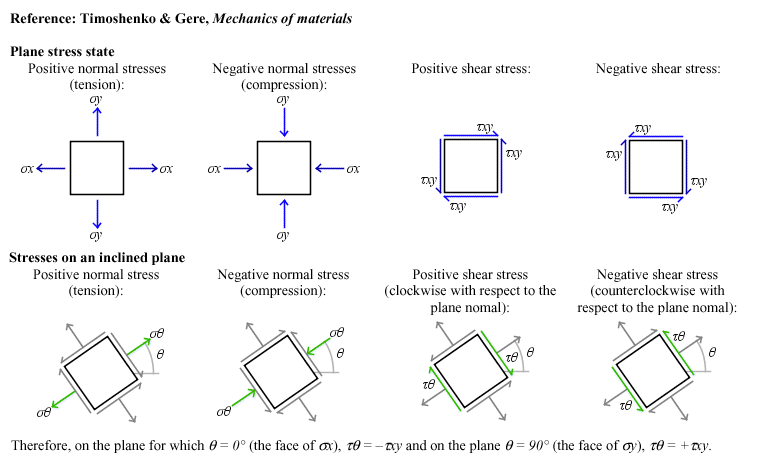

Sign Convention

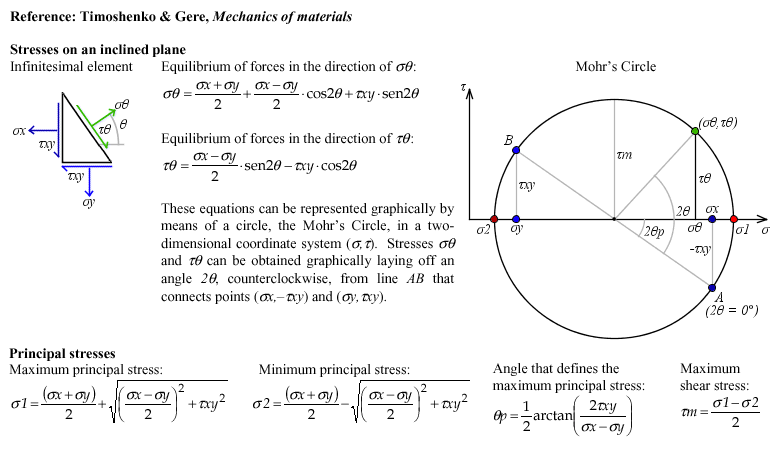

Mohr's Circle

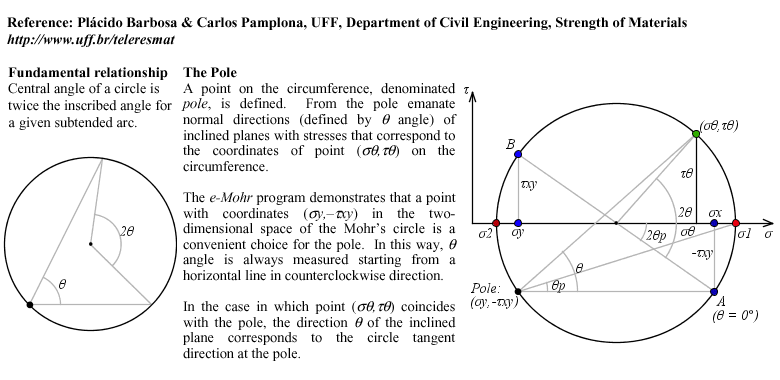

The Pole

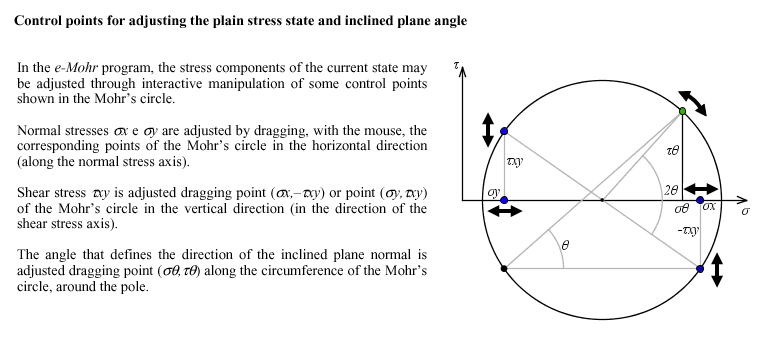

Control Points


Software Documentation


Last update: September 06, 2004 by Luiz Fernando Martha
